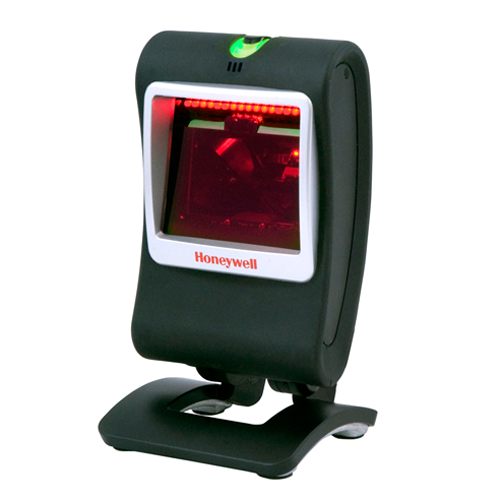

Honeywell Genesis 7580g Area Imager

Honeywell’s GenesisTM 7580g, the world’s first presentation areaimaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design.

Powered by Adaptus® Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to healthcare to retail POS. Aggressive reading of bar codes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware.

Download PDF
Specification
Mechanical / Electrical
Dimensions (LxWxH) 80 mm x 83 mm x 150 mm (3.2˝ x 3.3˝ x 5.9˝)
Weight 340 g (12 oz)
Input Voltage 5.5 VDC ± 0.25 V
Operating Power 2.0 W (400 mA @ 5 V)
Standby Power 0.5 W (100 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Auxiliary Ports EAS with interlock (EAS model)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 100,000 Lux
Scan Performance
Scan Pattern Area Image (832 x 504 pixel array)
Motion Tolerance: 200 cm/s (78 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal: 46°; Vertical: 28°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 70°, 75°
Decode Capabilities Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
Warranty 2 year factory warranty
