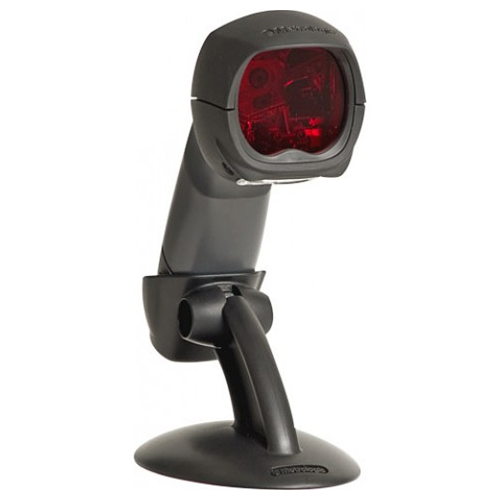

Honeywell Fusion 3780 Omni-Directional Scanner

Fusion combines omni-directional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The
20-line scan pattern provides superior scanning over existing single line hand-held scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores.

Add to Enquiry
Download PDF
Specification
Mechanical / Electrical
Dimensions (L x W x H) 189 mm x 65 mm x 73 mm (7.4˝ x 2.6˝ x 2.9˝)
Weight 195 g (6.9 oz)
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA @ 5 V)
Standby Power 1.0 W (200 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Environmental
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand multiple 1.5 m (5´) drop
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180)
Scan Speed Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3-year factory warranty
