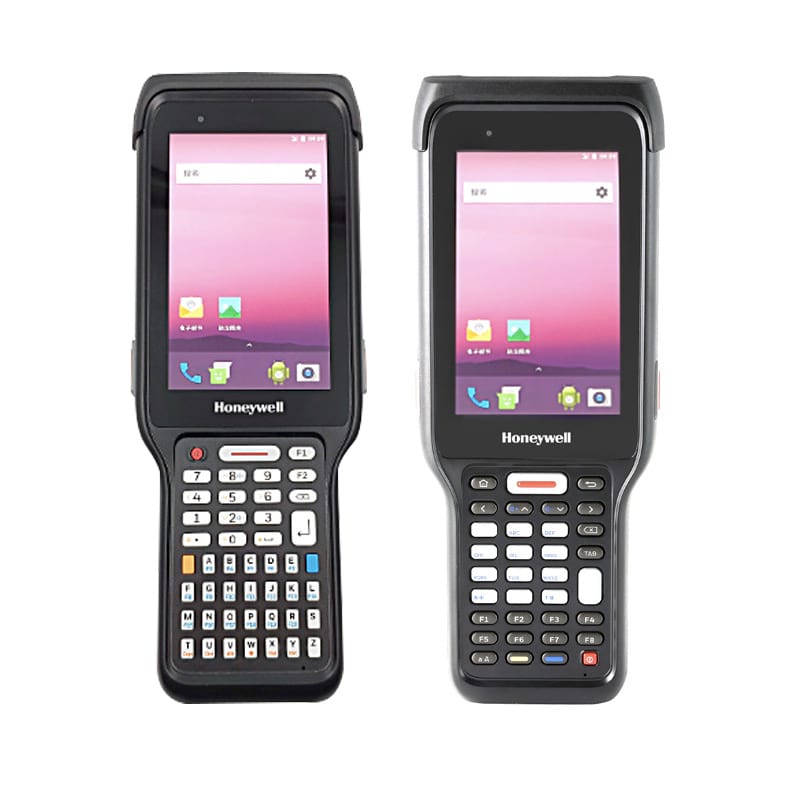

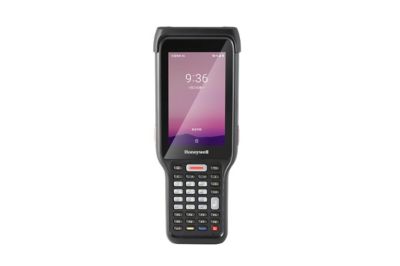

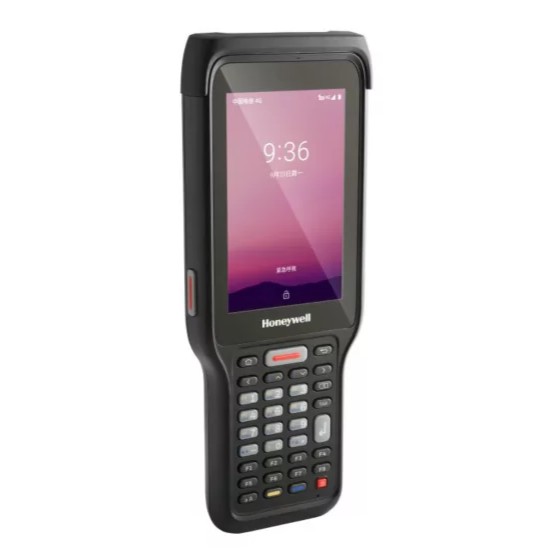

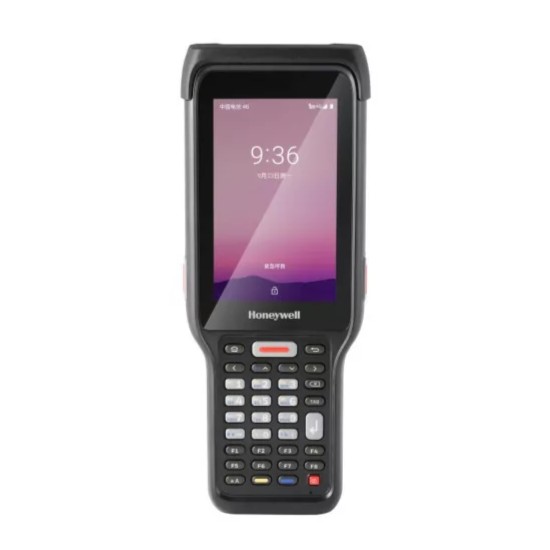

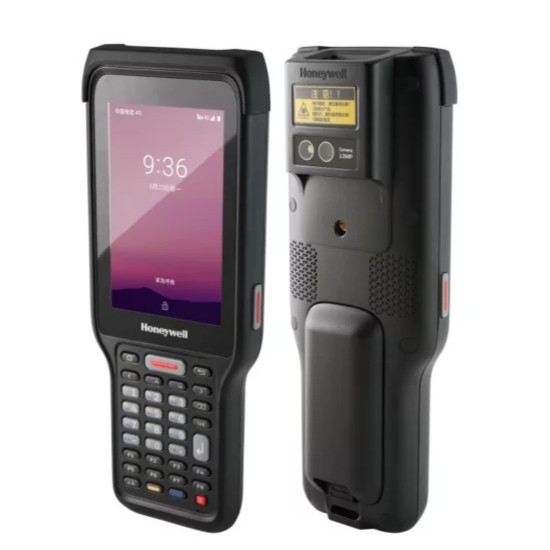

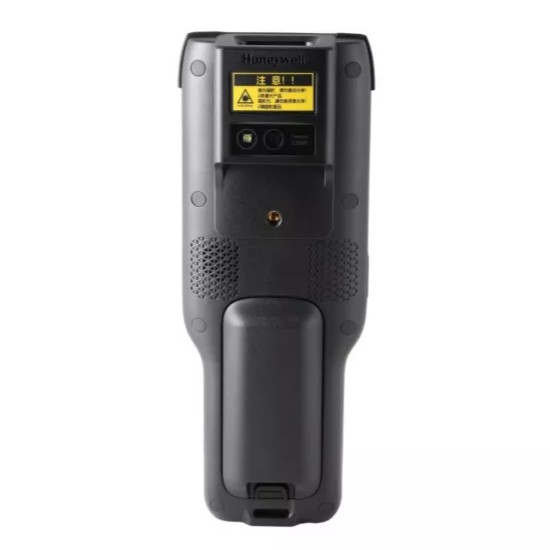

Honeywell EDA61K Android Mobile Computer

The Honeywell ScanPal™ EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, helps keep material flowing smoothly all day long, even during peak season. Available with both 34-key numeric and 47-key alpha-numeric keypad options, and a choice of scan engines that read from a few centimeters to up to 15 meters, the EDA61K is available in configurations suitable for most applications. The EDA61K comes with 4G LTE cellular support in many countries, making it possible to eliminate Wi-Fi infrastructure in some cases. Combined with a rugged package that survives repeated 1.5-meter (4.9 ft) drops to concrete, this means you can be confident that the EDA61K will deliver reliable, secure, compatible performance for years, maximizing return on investment. In addition to traditional keypads, the EDA61K is available with pre-licensed StayLinked SmartTE software and a sensitive, 4-inch touchscreen that make it suitable for younger workforces more accustomed to touchscreens, reducing training and adoption time – a key advantage for enterprises employing temporary workers during peak seasons

Download PDF
Physical Characteristics


Dimensions with Battery (L x W x D): 206 mm x 78 mm x 41.9 mm (8.1 in x 3.1 in x 1.6 in)
Weight: 435 g (15.3 oz) : N6703 version

460 g (16.2 oz) : EX20 version


Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage Temperature -30°C to +50°C (-22°F to +158°F)
Humidity 10% to 90% (non-condensing)
Drop 1.5 m (5 ft) to concrete at room temp
Tumble 1,000 tumbles at 1 m (3.3 ft)
Electrostatic Discharge  ±8 kV direct; ±12 kV air
Environmental Sealing IP65
System Architecture
Processor  Qualcomm SDM450 1.8 GHz octa-core
Operating System  Android 9
Memory 3 GB RAM, 32 GB Flash
Display 4 inch
Touch Panel Multi-touch capacitive
Keypad 34-key numeric / 47-key alpha-numeric
I/O Ports USB type C, OTG supported
Storage Expansion microSDHC up to 128 GB
Battery Li-Ion, 3.6V, 7000 mAh
Charging Time 5.5 hours
Battery Runtime 25 hours (test profile: scan once every 9 seconds; display at 50% brightness; turn off keypad backlight and activate Wi-Fi only)
Real Time Clock 10 min backup via super cap
Button Batteries 22 mF super cap
Scan Engine EX20, N6703SR
Scan Notification Red/green light
Camera* 13.0-megapixel color camera with autofocus and LED flash (* Note: Camera is available on N6703 version only)
Wireless Connectivity


WLAN IEEE 802.11 a/b/g/n/r/ac
WWAN GSM&EDGE: Band2/Band3/Band5/Band8

WCDMA: Band1/Band2/Band4/Band5/ Band6/Band8/Band9/Band19 CDMA: BC0/BC1/BC6

FDD-LTE: Band1/Band2/Band3/Band4/ Band5/Band7/Band8/Band9/Band12/ Band13/Band17/Band19/Band20/Band25/Band26/Band28/Band30

TDD-LTE: Band38/Band39/Band40/Band41

Bluetooth   Bluetooth Class 4.2
GPS Integrated
