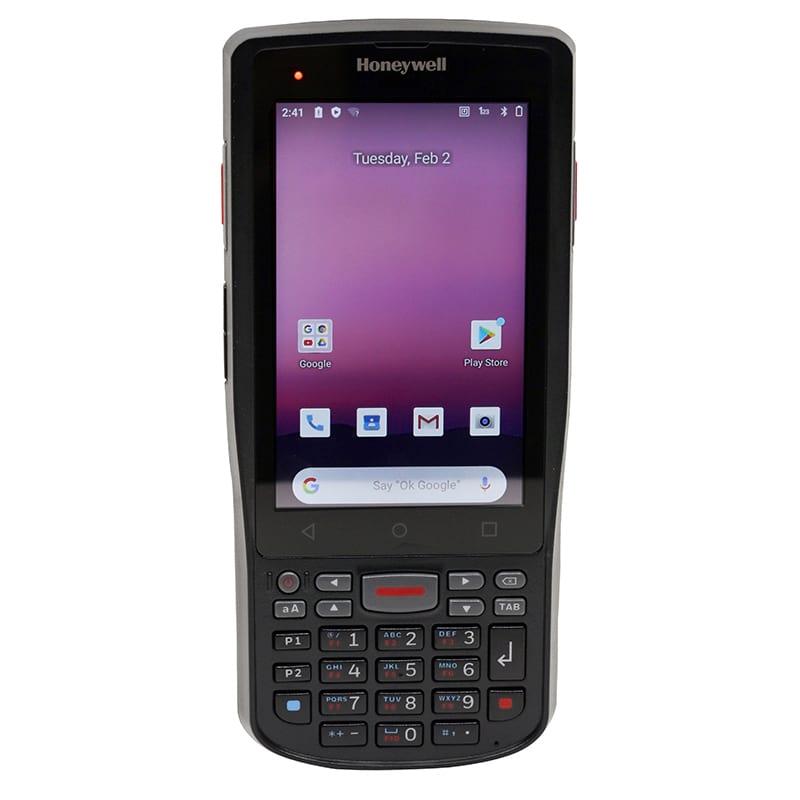

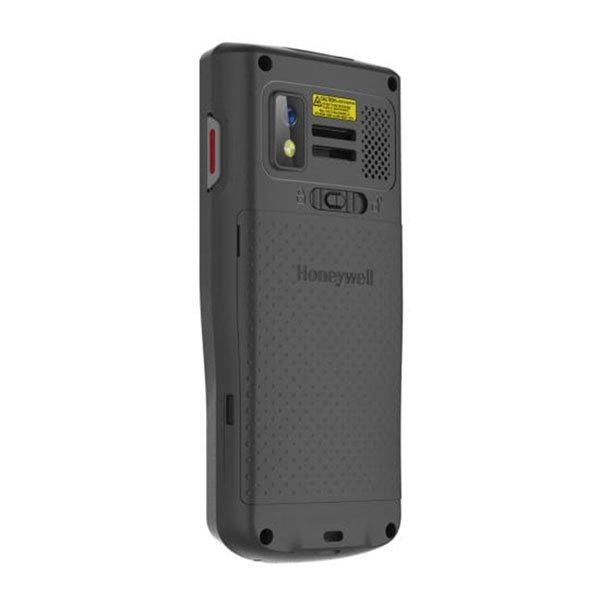

Honeywell EDA51K Android Mobile Computer

The EDA51K adds a keyboard to the field-tested, highly popular EDA51 computer, based on the Qualcomm® Snapdragon™ 1.8 GHz octa-core processor and Android 10 (Q). With up to 4 GB of RAM and 64 GB of flash memory, the EDA51K supports business environments that run many software applications. Available with Honeywell’s best-in-class N6703 scan engine.  The powerful, 13-megapixel color camera captures high quality images in pictures in dim environments. Rated IP65 for ingress protection, the EDA51K is dust and water-resistant and suitable for use in the elements. Tested to survive 500 half-meter tumbles and multiple 1.5 m (5 ft) drops to concrete across the operating temperature range.

Download PDF
Dimension 164 mm x 73 mm x 24.5 mm(6.5 in x 2.9 in x 1.0 in)
Weight 300 g (10.6 oz) with battery
Display 10.6 cm (4 in)
Resolution WVGA 480 x 800
Type Transmissive
Backlight LED
Touchscreen Multi-touch capacitive
Keyboard 26-key numeric main keypad; side keys: volume up/down, right and left scan keys; soft keys: 3 touch keys (Back, Home, Menu)
Operating Temperature -10°C to +50°C (14°F to 122°F)
Storage Temperature -20°C to +60°C (-4°F to +148°F)
Humidity 10% to 90% (non-condensing)
Drop Multiple 1.5 m (4.9 ft) drops across operation temperature
Tumble 500x 0.5 m tumbles
Electrostatic Discharge ±8 kV direct; ±12 kV air
Environmental Sealing IP65
Processor Qualcomm 1.8 GHz octa-core
Operating System Android 10 with
Google Mobile Services
Memory 3 GB RAM/ 32GB Flash, 4 GB RAM/64 GB Flash optional
Expansion Memory: MicroSDHC (up to 128 GB)
PC Communication Type-C USB 2.0
Battery 4000 mAh @ 3.8 V
Camera 13-megapixel color camera with autofocus and LED flash
GPS GNSS Receiver for GPS, GLONASS and Compass (Beidou) (for WWAN only)
Button Batteries 22 mF super-cap
Real-Time Clock 10-min backup via super-cap
Charging Time 4 hours
Battery Runtime 12 hours+
Engine 1D/2D: N6703, N3603 optional
LEDs Battery Condition: Red/Green/Blue
Scan Indication: Red/Green light
Vibration: Vibration Motor
Sensors Proximity, Light, Acceleration
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac radio, Wi-Fi certified 802.11 a/b/g/n/ac
WWAN GSM & EDGE: Band 2/3/5/8
WCDMA: Band 1/2/4/5/6/8/9/19
FDD-LTE: Band 1/2/3/4/5/7/8/9/12/13/17/19/20/25/26/28/30/66
TDD-LTE: Band 38/39/40/41 (2555~2655)
Bluetooth Bluetooth® Class 4.2
NFC Integrated Near Field Communication
