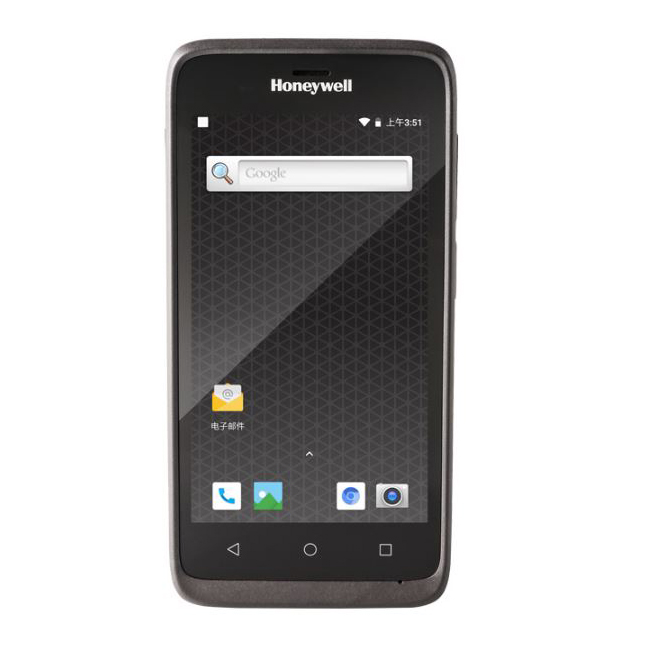

Honeywell EDA51 Android Mobile Computer

The ScanPal™ EDA51 mobile computer, the newest member of Honeywell’s popular ScanPal family, is that tool. With a fast Qualcomm® Snapdragon™ SDM450 processor and robust wireless connectivity, your workers can access crucial business apps and information when they need it – and provide the best possible service to your customers.
The ScanPal EDA51 is also ready to work as hard as your workers do. The large, vivid 5-inch display allows plenty of information to be displayed for interaction with your back-office systems and your customers, while the powerful 4,000 mAh lithium-ion battery lasts a full shift and beyond. The thin, lightweight design makes it easy to carry and pocket the device, and use it comfortably all day long.

Download PDF
Specification
Mechanical
Dimensions: 157 mm x 78.2 mm x 16.9 mm (6.18 in x 3.08 in x 0.67 in)
Weight: 272 g (9.59 oz)
Display Size: 12.7 cm (5.0 in)
Resolution: 1280 x 720 High Definition
Backlight: LED
Touchscreen: Multi-touch
Enviromental
Operating Temperature -10°C to 50°C (-14°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90% relative humidity (non-condensing)
Drop Multiple 1.2 m (4 ft) drops to concrete at room temperature
Tumble 300 times at 0.5 m (1.64 ft)
Environmental Sealing IP64 (IEC 60529)
System Architecture
Processor Qualcomm Snapdragon SDM450, 1.8 GHz octa-core
Operating System Android 8.1
Memory 2 GB RAM/16 GB Flash
Storage Expansion MicroSDHC (up to 128 GB)
Camera 13-megapixel color camera
PC Interface Micro USB 2.0
Battery Li-Ion, 3.8 V, 4,000 mAh, removable
Real-Time Clock (RTC) 10 min backup via super-cap
Charging Time 4.5 hours
Battery Runtime 12 hours
Scan Engine Honeywell N3601, N6603 Slim Imager (1D/2D barcode symbologies)
LED Battery Status Indicator: red/green/blue
Sensors acceleration sensor, light sensor, and proximity sensor
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac
WLAN Security WEP, 802.1x, TKIP, AES, LEAP, PEAPv0, PEAPv1, EAP-M, SCHAPv2, EAP-GTC, EAP-TLS, EAP-TTLS, WPA-PSK, WPA2
Bluetooth Class 4.2 Bluetooth
WWAN Radio* GSM/EDGE: Bands 2, 3, 5, 8
UMTS/HSPA+: Bands 1, 2, 4, 5, 8, 9, 19-
CDMA 1xRTT/EVDO: BC0, BC1, BC6
FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 19, 20, 26, 28
TDD-LTE: Bands 38, 39, 40, 41
NFC Integrated Near Field Communication
GPS Supported Protocols Simultaneous receiver support for GPS, GLONASS, and BeiDou
