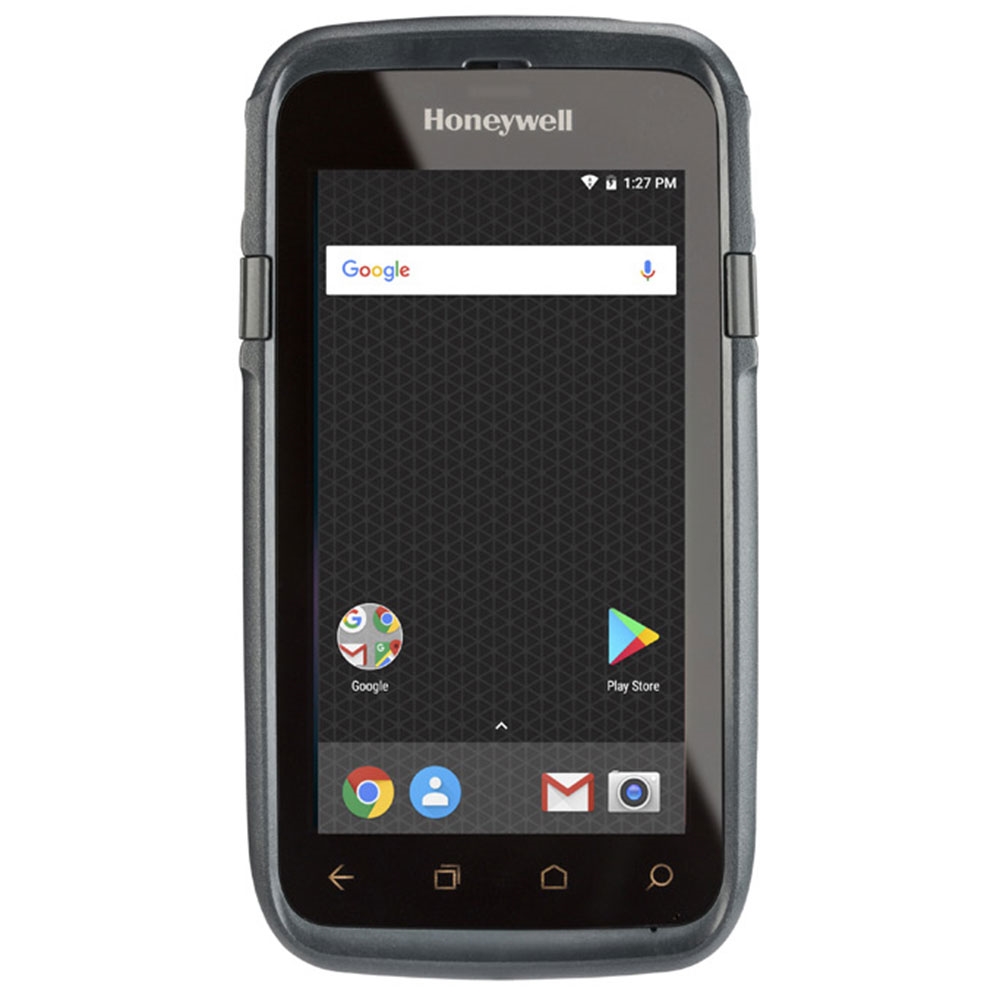

Honeywell Dolphin CT60 Android Mobile Computer

The Honeywell CT60 mobile computer is designed for enterprises that require anywhere, anytime, real-time connectivity to business-critical applications and fast data capture capabilities in a highly durable, long-lasting form factor built for maximum uptime and productivity out in the field or on the selling floor. Built on the Mobility Edge™ platform, the CT60 mobile computer offers an integrated, repeatable, and scalable approach based on a common hardware and software platform – unleashing customers from constraints faced today around integration and inflexible technologies without sacrificing enterprise security, reliability, performance, or management features.

Download PDF
System Architecture
Processor 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core
Operating System Android 8.1 (O), upgradable through Android R
Memory 3 GB/4 GB DDR4 RAM, 32 GB Flash
Storage Expansion User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Display 118 mm (4.7 in) High Definition (1280 x 720) bright color LCD with backlight, outdoor readable, optically bonded to touch panel, oleophobic fingerprint rejection
Touch Panel Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight readability. Automatic switching between glove and finger modes. Water droplet rejection. Visibility of the screen in landscape mode with polarizing glasses in sunny environments. Covered with Gorilla Glass 5 for increased resistance to drops. (Gorilla Glass 5 is offered only in models with N6703SR or N6703HD scan engines)
Battery Li-Ion, 3.6 V, 4040 mAh with integrated battery diagnostics. Warm swap capability that allows 1 minute to change batteries without loss of application work flow. (Warm swapping is offered only in models with N6703SR or N6703HD scan engines)
Keypad On-screen keypad, dual-action side scan triggers, volume up/down, camera, power button
Audio Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support.
I/O Ports Durable, custom IO connector
Camera 13-megapixel color camera, 4K video with image stabilization, and advanced software features for enhanced exposure control
Sensors Ambient Light Sensor, Proximity Sensor, Accelerometer, Gyroscope, Magnetometer, Pressure Sensor
Decode Capabilities Honeywell N6603SR, N6703SR, or N6703HD Slim Imager Engines (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software Honeywell Utilities and Demos
Hours of Operation 12+ hours
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features 802.11 r (802.11 k/mc – via
future release)
Cellular Radio
LTE Advanced Support
Supports VoLTE
– Up to 400 Mbps CAT13 LTE downlink
– Up to 75 Mbps CAT5 LTE uplink
LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19,20, 25, 26, 28, 29
LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
1xRTT/EV-DO – Bands BC0, BC1, BC10 (B26 BW)
WLAN Security OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Bluetooth V5.0 Bluetooth and BLE Supported
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
LTE (4G) Quad-Band (Bands 2, 4, 5, 17)
UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8)
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
Dual-Band 1xRTT/EV-DO (Bands BC0, BC1)
WWAN Radio (EU) LTE (4G)
Tri-Band (Bands 3, 7, 20)
UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8)
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
NFC Integrated Near Field Communication
Push to Talk (PTT) Supported
GPS Supported Protocols Simultaneous GNSS
Receiver Support for A-GPS, GLONASS, Qualcomm
Gen9 position engine, Galileo, and BeiDou
Dimensions: 160 mm x 82.5 mm x 19 mm
(6.3 in x 3.2 in x 0.75 in)
Weight: 350 grams (12.4 oz) with battery pack
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Humidity 0 to 95% relative humidity
Drop 2.4 m (8 ft) to concrete at room temp per MILSTD
810G; 1.5 m (5 ft) to concrete at -10ºC to 50ºC
(14ºF to 122ºF) temperature range; 1.2 m (4 ft) to
concrete down to -20ºC (-4ºF)
Tumble Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
ESD ±15 kV Air and ±8 kV Direct
Environmental Sealing Independently certified to meet
IP67 standards for moisture and particle intrusion
