Honeywell

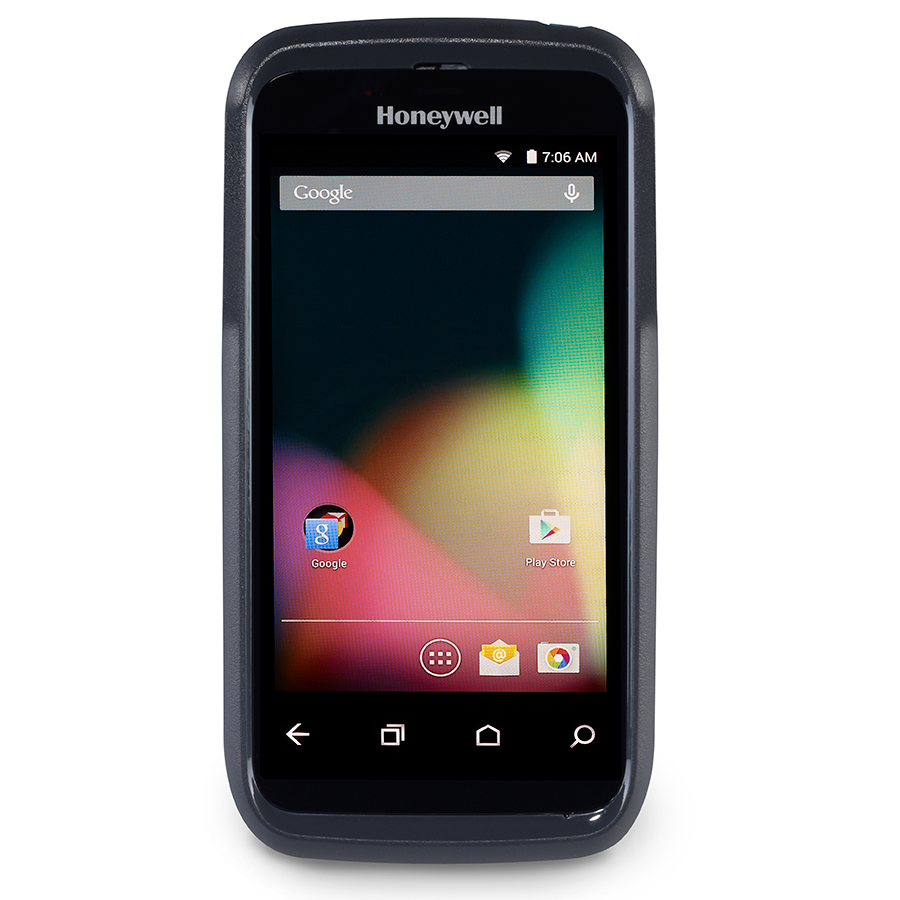

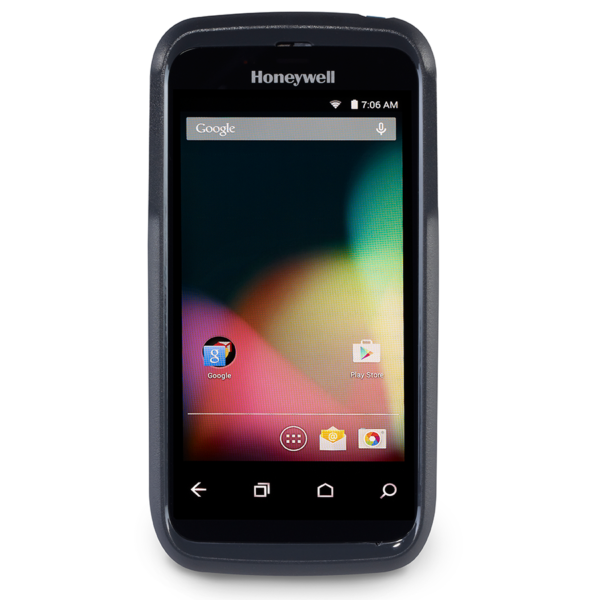

Honeywell Dolphin CT50 Android/Window Mobile Computer

For enterprises that require anywhere, anytime, real-time connectivity to business-critical applications and data capture capabilities to maximize efficiency and serve customers more effectively, the Dolphin™ CT50 is
Honeywell’s most advanced enterprise-ready 4G/LTE mobile computer. With support for either Windows® or Android™ operating systems, the Dolphin CT50 mobile computer targets highly mobile frontline employees
in scan-intensive workflows such as on-demand delivery, field service, and customer engagement who require a truly mobile office with the modern conveniences of an all-touch smartphone and the highest degree of future-proofing to speed business agility and lower total cost of ownership.

Add to Enquiry
Download PDF
Specification
Mechanical
Dimensions: 160 mm x 82.5 mm x 19 mm (6.3 in x 3.2 in x 0.75 in)
Weight: 342 grams (12.1 oz) with battery pack
Enviromental
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Humidity 0 to 95% relative humidity
(non-condensing)
Drop 2.4 m (8 ft) to concrete at room temp per MIL-STD 810G
1.5 m (5 ft) to concrete at -10ºC to 50ºC temperature range
1.2 m (4 ft) to concrete down to -20ºC
Tumble Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
ESD ±15 kV Air and ±8 kV Direct
Environmental Sealing Independently certified to meet
IP67 standards for moisture and particle intrusion
System Architecture
Processor 2.26 GHz Qualcomm Snapdragon 801 quad-core
Operating System Windows 10 IoT Mobile Enterprise, Android 6.0 Marshmallow
Memory 2 GB RAM, 16 GB Flash
Storage Expansion User-accessible microSD card up to 32 GB (SDHC/SDIO-compliant)
Display 119.4 mm (4.7 in) High Definition
(1280 x 720) bright color LCD with backlight,
outdoor viewable, optically bonded to touch panel
Touch Panel Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many offthe- shelf gloves.
Battery Li-Ion, 3.6 V, 4040 mAh with integrated battery diagnostics
Keypad On-screen keypad, dual-action side scan triggers, volume up/down, camera, power button
Audio Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support.
I/O Ports Custom IO connector
Camera 8.0-megapixel color camera with autofocus and advanced software features for better image quality
Sensors Ambient Light Sensor, Proximity Sensor, Accelerometer, Gyroscope, Magnetometer, Pressure Sensor
Decode Capabilities Honeywell N6600 Slim Imager
Engine (1D/2D barcode symbologies); Honeywell
SDKs for Android and Windows
Application Software Honeywell Power Tools
and Demos
Hours of Operation 12+ hours
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features 802.11 d/e/h/i/k/r/u/w
WLAN Security

(Windows):
OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP: TLS, PEAP-MS-CHAP-V2, TTLS

(Android):
OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified (Android only)
Non-Incendive Version Class I, II, III, Division 2, Groups A-G, -20°C (-4°F) to +50°C (122°F) T4A
Bluetooth Class 2 V4.0 Bluetooth
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP only
WWAN Radio* WWAN Radio (ATT/VZW/NA)
LTE (4G) Quad-Band (Bands 2, 4, 5, 17)
UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8)
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
Dual-Band 1xRTT/EV-DO (Bands BC0, BC1)
WWAN Radio (EU) LTE (4G)
Tri-Band (Bands 3, 7, 20)
UMTS/HSPA+ (3G) Quad-Band (Bands 1, 2, 5, 8)
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
NFC Integrated Near Field Communication
VPN IPSec V4/L2TP, PPTP
Push to Talk (PTT) Supported
GPS Supported Protocols GNSS Receiver for GPS and GLONASS
