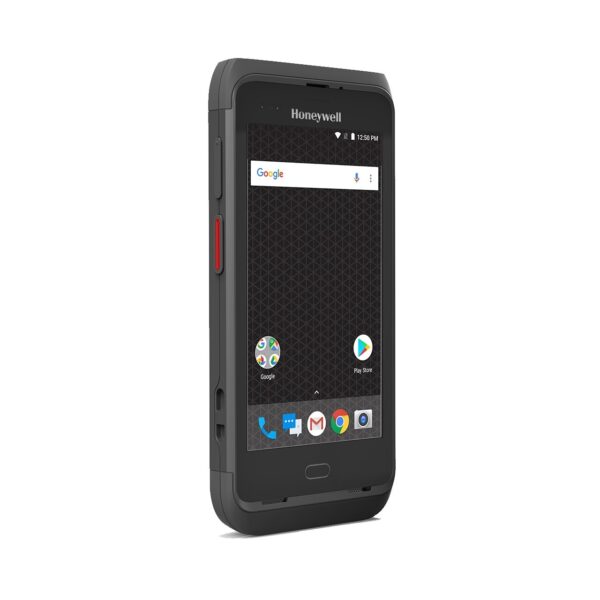

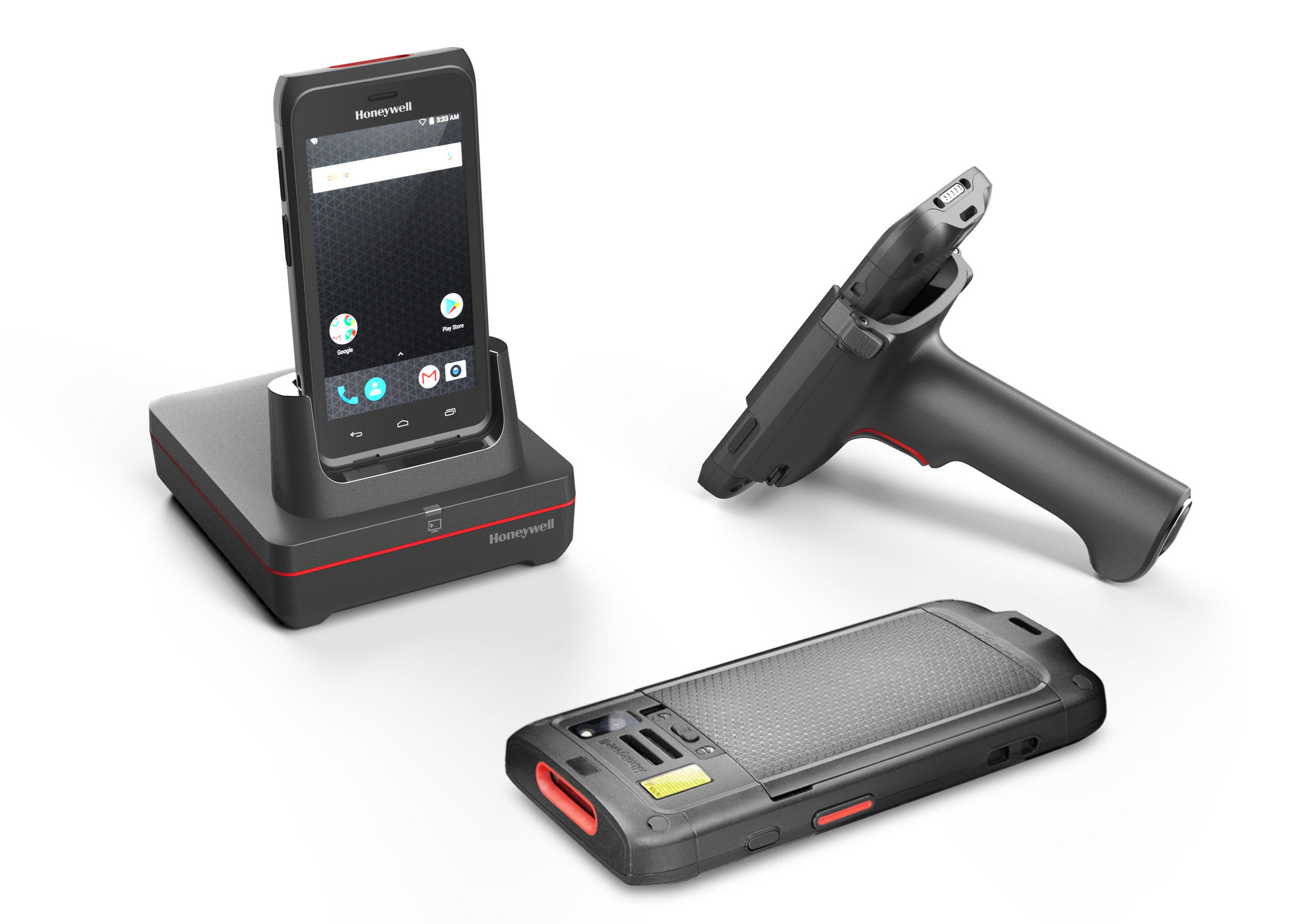

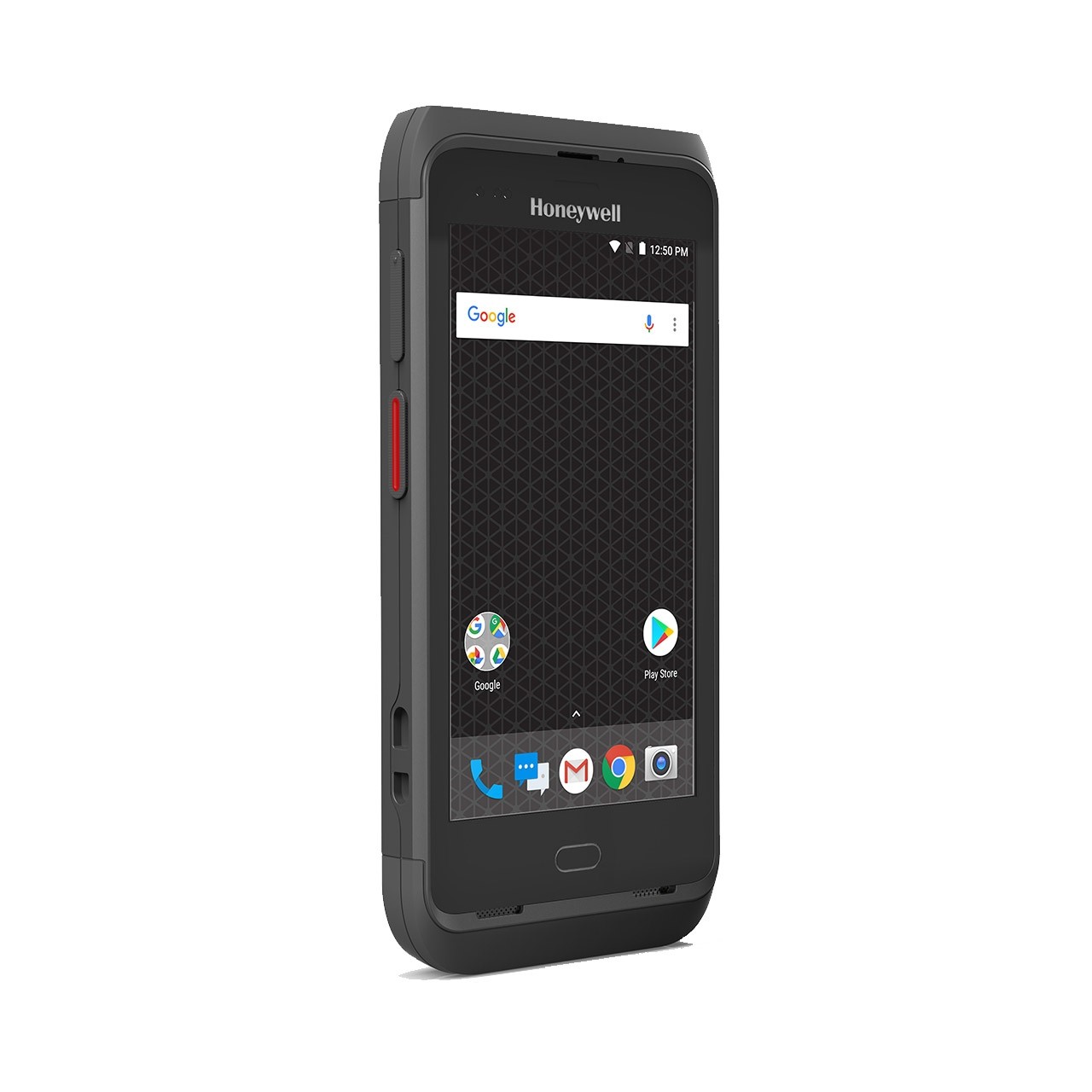

Honeywell Dolphin CT40 Android Mobile Computer

Introducing the Honeywell Dolphin™ CT40 mobile computer. Designed for retail store associates and other highly mobile workers, the lightweight, ergonomic Dolphin CT40 is a sleek and stylish enterprise-class, full-touch device that helps improve worker productivity and minimize fatigue. Equipped with a high-performance octa-core chipset, fast Wi-Fi, and 4G LTE connectivity, the Dolphin CT40 mobile computer gives associates quick access to business-critical information whenever they need it. The Dolphin CT40 device is built tough with a rugged housing and Corning® Gorilla® Glass 5 screen to protect the unit against drops and falls.

Download PDF
Specification
Mechanical
Dimensions: 162 mm x 77 mm x 18.2 mm (6.4 in x 3.0 in x 0.7 in)
Weight: 278 g (9.8 oz) with battery pack
Display Size: 12.7 cm (5.0 in)
Resolution: 1280 x 720 High Definition
Backlight: LED
Touchscreen: Multi-touchcapacitive, Gorilla Glass 5
Hard Keys: Volume up/down key, left/right scan, power button
Soft Key: On-screen scan button, reprogrammable into an application quick-launch key
Audio: 3.5 mm jack**, PTT, VoIP ready, speaker, HAC compliant
I/O Ports: Durable, custom IO connector
Enviromental
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Humidity 10% to 90% relative humidity (non-condensing)
Drop Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F). Multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G with rubber boot
Tumble 1,000 times at 0.5 m (1.6 ft)
ESD ±8 kV direct; ±12 kV air
Environmental Sealing Independently certified to meet
IP64 standards for moisture and particle intrusion
System Architecture
Processor 2.2 GHz Qualcomm® Snapdragon™ 660 octocore
Operating System Starts with Android 7.1 Nougat; available with Android 8.1 Oreo; upgradeable through Android R
Memory 2 GB or 4 GB DDR4 RAM, 32 GB Flash
Storage Expansion User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Camera 13-megapixel color camera with autofocus
Hours of Operation 12+ hours
Battery Li-Ion, 3.8 V, 4090 mAh/4040 mAh; smart battery with integrated diagnostic tools
 Scan Engine Honeywell N3601, N6603, N6703 Slim
Imager (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software Honeywell utilities and demos
Battery Runtime 12+ hours
Scan Engine Honeywell N3601, N6603 Slim Imager (1D/2D barcode symbologies)
Sensors Ambient light sensor, proximity sensor,
accelerometer, gyroscope
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features 802.11 d/e/h/i/k/r/u/w
WLAN Security OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified
Bluetooth V5.0 Bluetooth and BLE Supported
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
WWAN Radio*

WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
LTE Advanced Support : Up to 400 Mbps CAT13 LTE downlink; ;Up to 75 Mbps CAT5 LTE uplink
LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13,17, 19, 20, 25, 26, 28, 29
LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
1xRTT/EV-DO – Bands BC0, BC1, BC10 (B26BW)

NFC Integrated Near Field Communication
VPN IPSec V4/L2TP, PPTP
Push to Talk (PTT) Supported
GPS Supported Protocols Simultaneous GNSS Receiver
Support for GPS, GLONASS, Galileo, and Beidou
