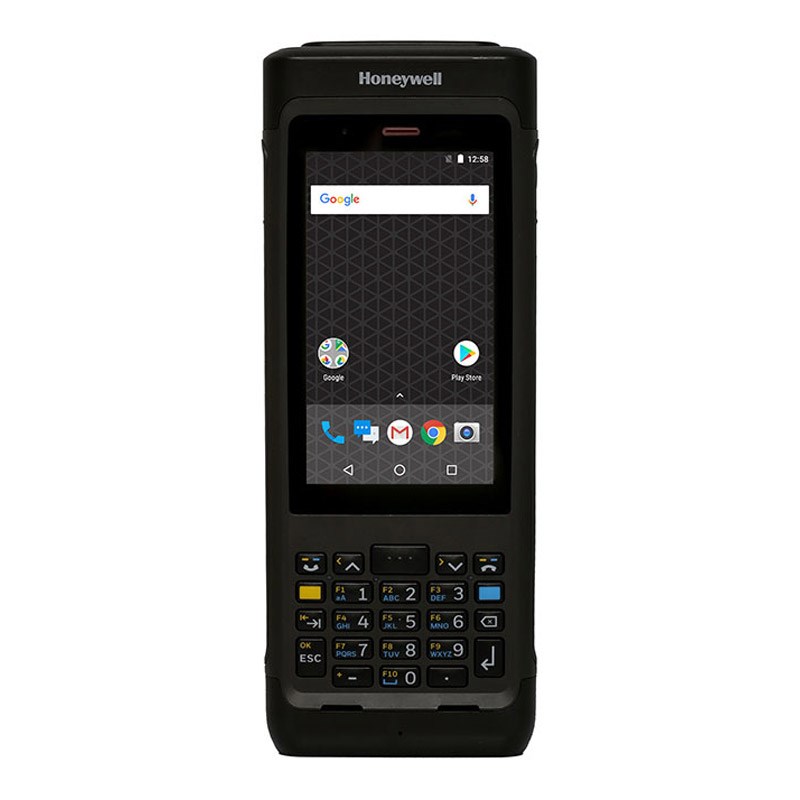

Honeywell Dolphin CN80 Android Mobile Computer

Honeywell Dolphin™ CN80 handheld computer can help you improve the speed and accuracy of operations while positioning you for the future. This rugged Android™ compatible handheld computer features full-touch capabilities plus real keys for fast data entry at high transaction rates even in severe settings. The Dolphin CN80 is also an Android Enterprise Recommended device, meaning it is rugged, built to deploy easily in the field, and built to stay up to date over a long-life span

Download PDF
System Architecture
Processor 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core
Operating System Each Android version guaranteed from 7.1 to at least 11/R, committed support for Android 12 and 13 pending feasibility
Memory 3 GB/4 GB RAM, 32 GB Flash
Storage Expansion User-accessible microSD card up to 512 GB (SDXC/SDHC-compliant)
Camera 13.0-megapixel color camera with autofocus and advanced software features for better image quality
Audio Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support
Battery Li-Ion, 3.85 V, 5800 mAh with integrated battery diagnostics
I/O Ports Custom durable I/O connector with USB 3.0 signals and power input
Display 106.7 mm (4.2 in) FWVGA (854 x 480) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel
Touch Panel Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves

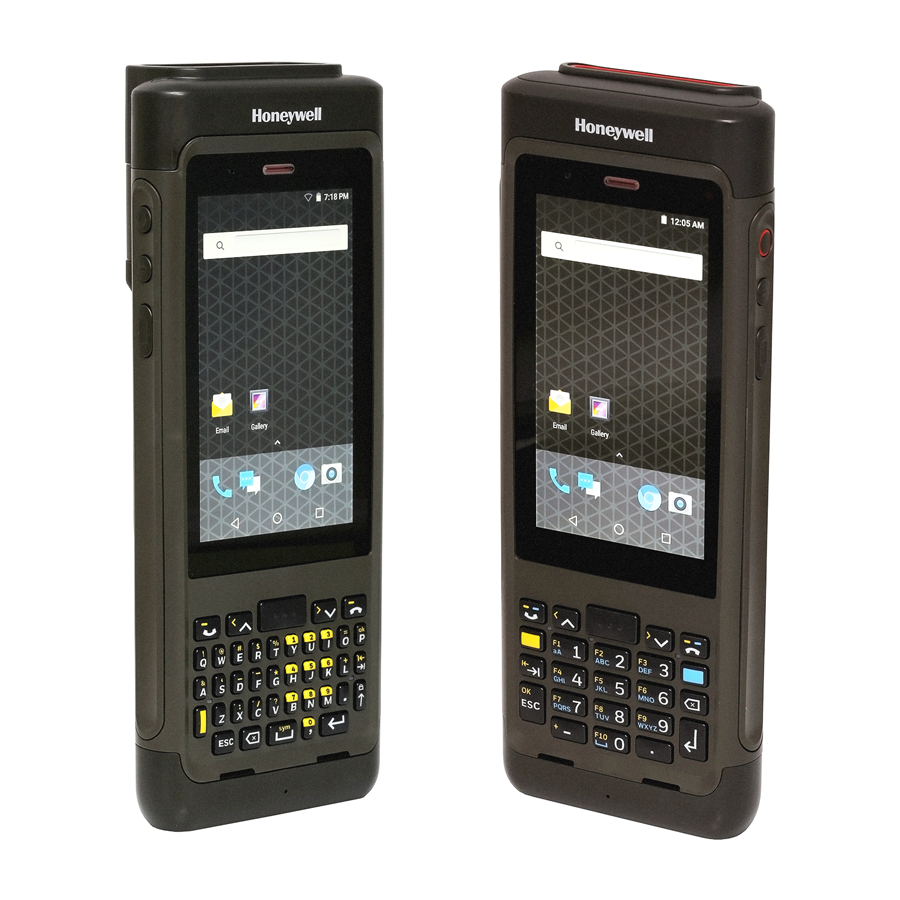

Keypad 40-key QWERTY keypad or 23-key numeric function keypad, plus dual side scan triggers, volume up/down, camera, power onscreen keypad
Scanning Capabilities Honeywell N6603ER
Imager (1D/2D); Honeywell EX20 Near/Far
Imager (1D/2D, 0.15 m to 15.2 m [6 in to 50 ft]);
Honeywell Scanning SDKs for Android
Sensors Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor
  • Honeywell Power Tools and Demos
  • Terminal Emulator
  • Enterprise Browser
  • Application Launcher and Lockdown Provisioning Tools
  • Honeywell Mobility SDKs for Android, Web, andXamarin
  • Support for Third-Party MDM Solutions
  • One-bay and four-bay desktop charging/com cradles
  • Vehicle cradles and holders
  • Wireless charging vehicle cradle
  • Snap-on communication/charging adapters
  • Removable scan handle, various carrying devices
N6603ER Version 20.4 cm x 7.8 cm x 3.32 cm (8.03 in x 3.07 in x 1.31 in)
Weight: 500 grams (17.6 oz) with battery pack
EX20 Version 20.53 cm x 7.8 cm x 3.97 cm (8.08 in x 3.07 in x 1.56 in)
Weight: 550 grams (19.4 oz) with battery pack
Operating Temperature Standard Temp Unit: -20°C to 50°C (-4°F to 122°F)
Cold Storage Unit: -30°C to 50°C (-22°F to 122°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity 0 to 95% relative humidity (noncondensing)
Drop 3 m (10 ft) to concrete at room temp per MIL-STD 810G; 1.8 m (6 ft) to concrete at -20ºC to 50ºC (-4°F to 122°F) temperature range; 1.6 m (5 ft) to concrete down to -30ºC (-22°F)
Tumble Exceeds 2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
Environmental Sealing Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac; Wi-Fi certified 2×2 MIMO support
Additional WLAN Features 802.11 d/e/h/i/k/r/w (mc with Android P)
WLAN Security OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified
Bluetooth Class 1.5 V5.0 Bluetooth and BLE
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
WWAN Radio* WWAN Radio (ATT/VZW/SPRINT/TMO/ NA/EU) with two micro-SIM slots
– Up to 400 Mbps CAT13 LTE Downlink
– Up to 75 Mbps CAT5 LTE Uplink
FDD-LTE Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29
TDD-LTE Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band 850/900/1800/1900 MHz
1xRTT/EV-DO Bands BC0, BC1, BC10 (B26 BW)
NFC Integrated Near Field Communication
Zigbee Integrated Zigbee 3.0 radio for IoT compatibility
VoIP Supported
Push to Talk (PTT) Supported
GPS Supported Protocols Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and BeiDou
Non-Incendive Version
  • Suitable for use in Division 2 locations
  • Safety: cULus Listing – ISA/ANSI 12.12.01
  • Gases: Class I – Groups A, B, C, D
  • Dusts: Class II – Groups F, G
  • Fibers and Flyings: Class III
    *Max Ambient: 50°C (122°F) T6
