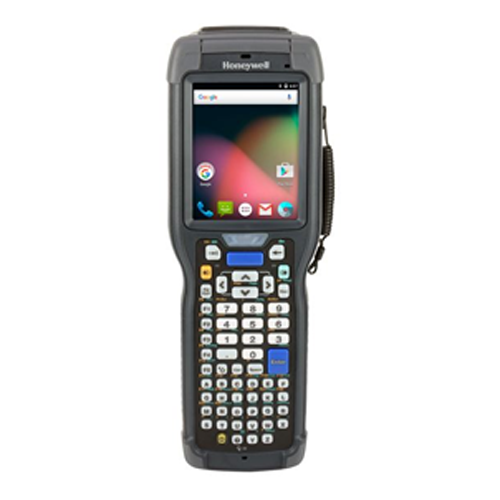

Honeywell CK75 Ultra-Rugged Android Mobile Computer

Honeywell offers a true no-compromise solution with the CK75 Ultra- Rugged Mobile Computer. In addition to being 31% smaller and lighter than any other form factors in its class, the CK75 mobile computer is optimized for warehouse and distribution environments with premium, industrial-grade materials for the perfect balance of ruggedness and duty cycle, along with features that focus on enabling flexibility and agility, even in the most extreme conditions. Extend the use of the CK75 mobile computer into cold storage and freezer environments with the heater-equipped Cold Storage CK75 Mobile Computer.

Download PDF
Physical Characteristics
Dimensions with Battery (L x W x D): 23.7 cm x 8.0 cm x 5.0 cm (9.33 in x 3.16 in x 1.98 in)
Weight: 584g (20.6 oz) with battery
Width: Grip area 6.42 cm (2.53 in)
Operating Temperature Standard Temp Unit: -20°C to +60°C (-4°F to +140°F), transitory exposures to -30°C (-22°F)
Cold Storage Unit: -30°C to +60°C (-22°F to +140°F)
Storage Temperature -30°C to +60°C (-22°F to +140°F)
Charging Temperature +5°C to +35°C (+44°F to +95°F)
Humidity Non-condensing, 95%
Drop 2.4 m (8 ft) to concrete per MIL-STD 810G;
1.8 m (6 ft) to concrete across operating temperature range per MIL-STD 810G
Tumble 2,000 (1 m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge +/-15 kV air discharge, +/-8 kV direct discharge
Rain and Dust Resistance IP67
Cold Storage: IP65
System Architecture
Power Battery Pack: 3.7 V, 5200 mAh; Li-Ion, removable, rechargeable
Microprocessor Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
Operating System Microsoft® Windows Embedded Handheld 6.5
Android 6.x.x Marshmallow with GMS
Memory RAM: 2 GB RAM
ROM: 16 GB Flash
Storage Expansion: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
Display 8.9 cm (3.5 in) Transmissive VGA
480 x 640 pixels
65,536 (16-bit RGB) colors
High-durability touch screen
Hardened Corning® Gorilla® Glass display for
superior durability
LED backlight
Ambient light sensor
Standard Communication USB – Full Speed 2.0 Host, USB – Full Speed 2.0 Client
