Honeywell

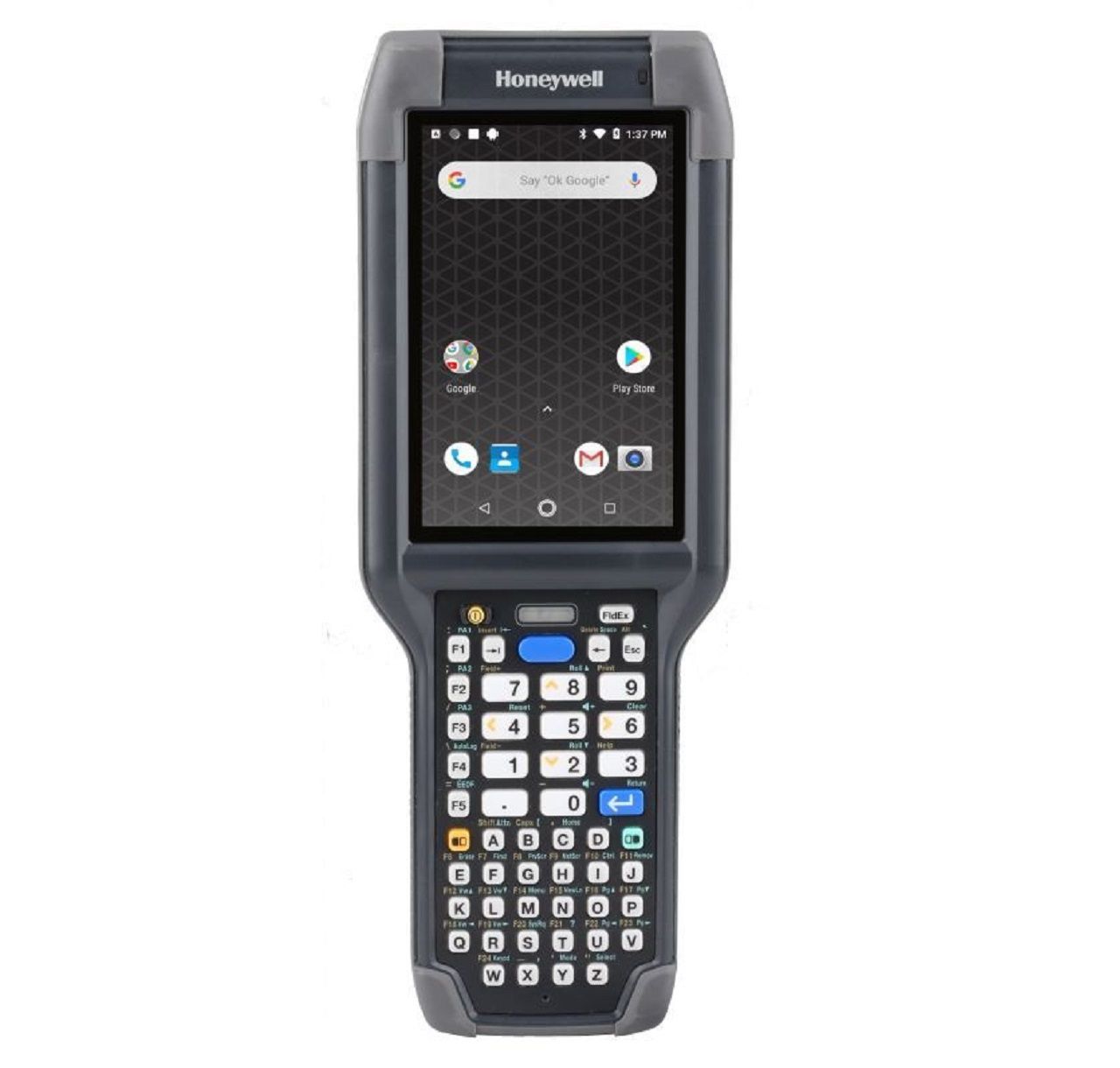

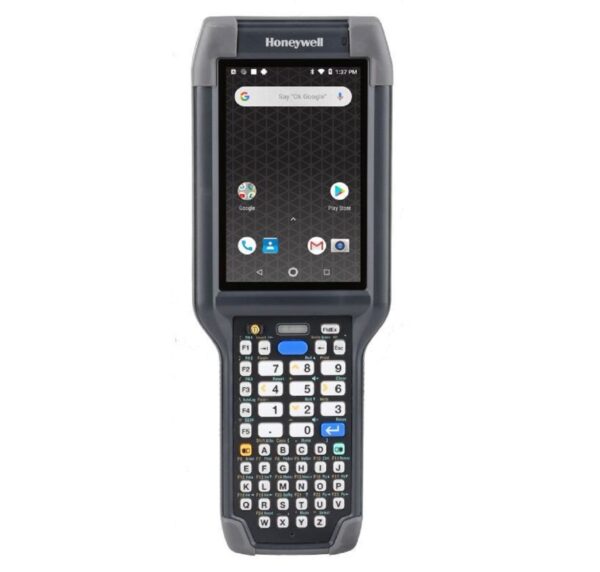

Honeywell CK65 Android Mobile Computer

The industry’s most advanced ultra-rugged mobile computer that’s ready for the toughest DC environments and the broadest range of workflows, the CK65 is designed to maximize worker productivity and minimize TCO.

Download PDF
Specification
System Architecture
Processor 2.2 GHz Qualcomm® 64-bitSnapdragon™ octa-core
Operating System Android 8.0 Oreo (system compatible up to Android R)
Memory 2 GB/4 GB DDR4 RAM, 32 GB Flash
Display 10.16 cm (4 in) 480 x 800 bright color LCD with backlight, outdoor readable, optically bonded to touch panel
Touch Panel Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and selfcapacitance modes for water rejection and use with many off-the-shelf gloves

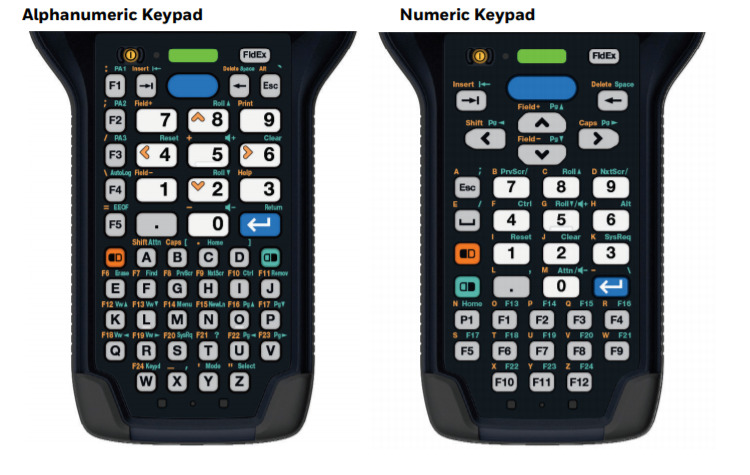

Keypad 51-key alpha or 38- or 30-key numeric keypad, plus two programmable side buttons
Audio Speaker, microphone support with noise cancellation. PTT support and
Bluetooth® wireless headset support
I/O Ports Durable, custom I/O connector compatible with CK3 accessories
Camera 13.0-megapixel color camera with autofocus and advanced software features for better image quality, f/2.0 aperture, flash LED with flashlight mode
Sensors Ambient light sensor, accelerometer, gyroscope, hall effect
Storage Expansion User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery Li-Ion, 7,000 mAh Smart Battery
Hours of Operation 28 hours
Scanning Capabilities Honeywell N6703 Slim Imager Engine (1D/2D);
6803FR FlexRange Slim Imager (1D/2D);
Honeywell EX20 Near/Far Imager (1D/2D);
Honeywell Scanning SDKs for Android
Warranty One-year factory warranty
Wireless Connectivity
WLAN IEEE 802.11 a/b/g/n/ac; Wi-Fi certified 2×2 MIMO support
Additional WLAN Features 802.11 d/e/h/i/ k/r/u/w
WLAN Security OPEN, WEP, WPA/WPA2 (personal and enterprise)
Supported EAP TLS, PEAP, TTLS, PWD, LEAP CCX Version 4 certified
Bluetooth V5.0 with BLE and Backward Compatibility
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP SPP, GATT
NFC Integrated Near Field Communication
VoIP Supported
VPN IPSec V4/L2TP, PPTP
Push to Talk (PTT) Supported
Mechanical
N6703SR/6803FR Version Dimensions 22.7 cm x 8.3 cm x 4.2 cm (8.9 in x 3.3 in x 1.7 in)
N6703SR/6803FR Version Weight N6703SR/6803FR Version Weight
EX20 Version Dimensions 22.7 cm x 8.3 cm x 4.7 cm (8.9 in x 3.3 in x 1.9 in)
EX20 Version Weight 544 g (19.2 oz) with battery pack
Enviromental
Operating Temperature Standard Temp Unit: -20°C to 50°C (-4°F to 122°F)
Cold Storage Unit: -30°C to 50°C (-22°F to 122°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity 0 to 95% relative humidity (non-condensing)
Drop 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range per MIL-STD 810G
Tumble 2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
ESD ±15 kV Air and ±8 kV Direct
Environmental Sealing Independently certified to meet IP65 and IP67 standards for moisture and particle intrusion
