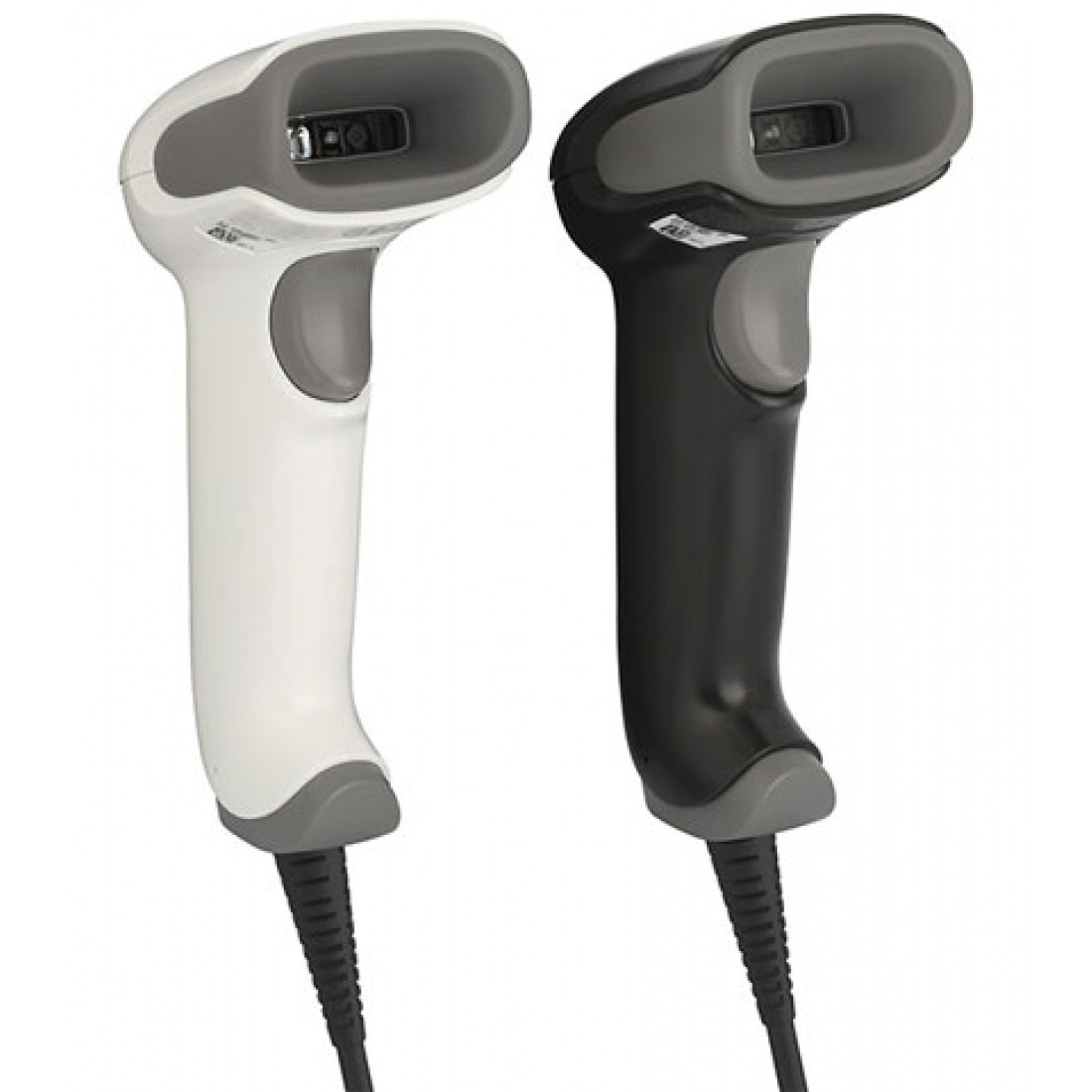

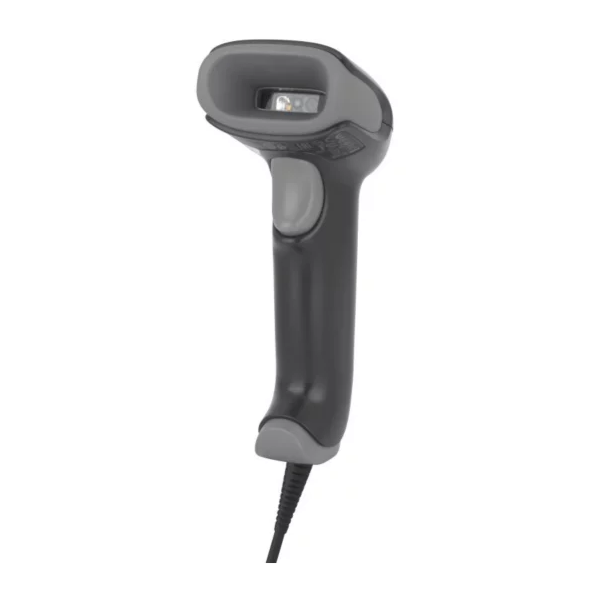

Honeywell 1470G 2D Area Imager

Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1470g scanner delivers industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.

Download PDF
Specification
Mechanical / Electrical
Dimensions (L x W x H) 62 mm x 169 mm x 82 mm (2.4 in x 6.6 in x 3.2 in)
Scanner Weight 130 g (4.6 oz)
Input Voltage 4.0V DC to 5.5V DC
Operating Power 2 W (400 mA @ 5V DC)
Standby Power 0.45 W (90 mA @ 5V DC)
Host System Interfaces USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)

Electrostatic Discharge (ESD)
(Scanners and Cradles)

±8 kV indirect coupling plane, ±15 kV direct air
Humidity 0% to 95% relative humidity, non-condensing
Tumble Spec 1,000 0.5 m (1.6 ft) tumbles (impacts)
Drop Engineered to withstand 30 1.8 m (6 ft) drops to concrete
Environmental Sealing IP40
Light Levels 0 to 100,000 lux
(9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (1040 x 720 pixel array)
Motion Tolerance 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal: 39.2° nominal
Vertical: 27.4° nominal
Roll, Pitch, Skew ±180°, ±65°, ±70°
Barcode Types Reads standard 1D, PDF, 2D, and DotCode symbologies
Note: Decode capabilities dependent on configuration.
Warranty 5-year factory warranty
