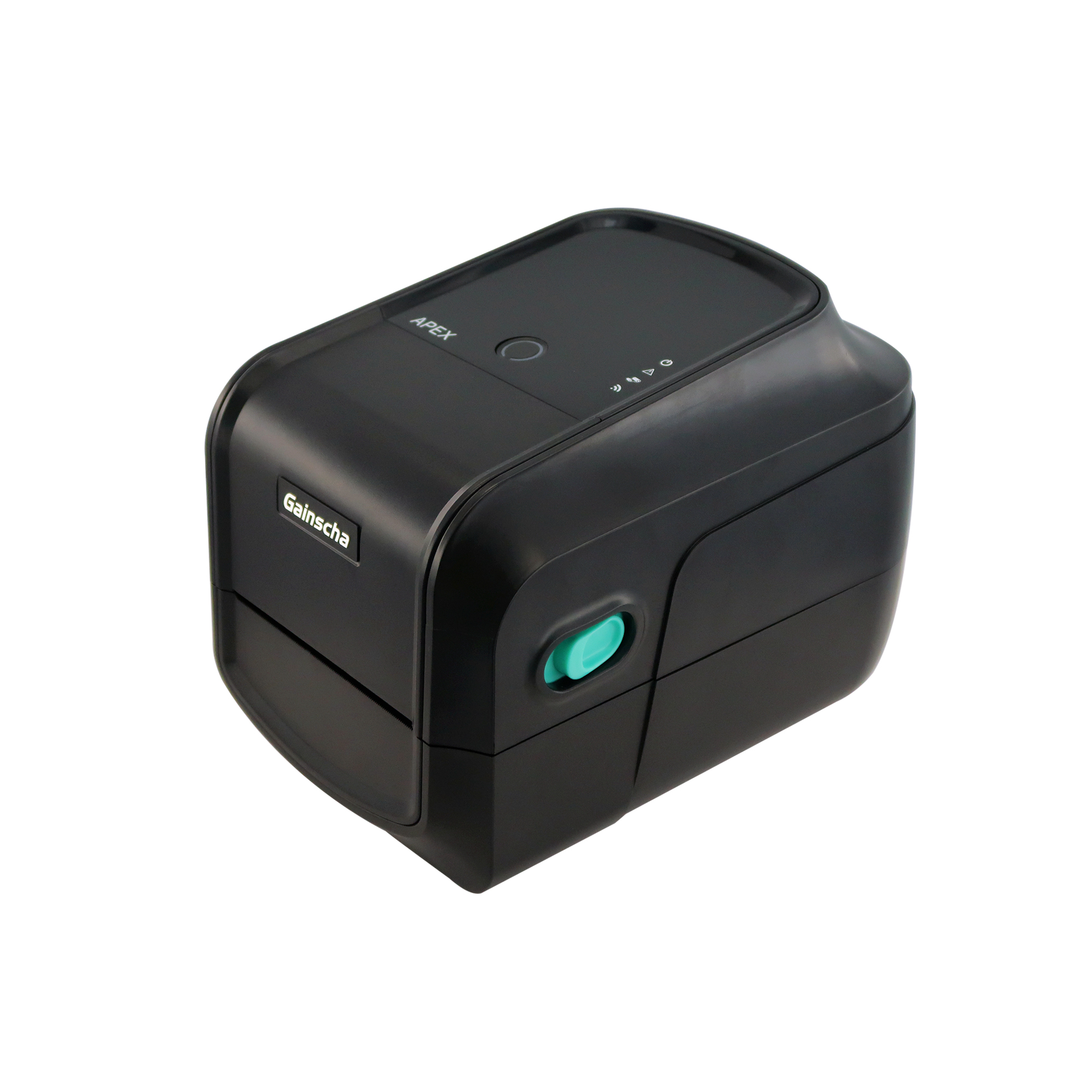

Gainscha 4″ Desktop Printer – GS2406T

A desktop barcode printer is a type of printer designed to print barcode labels and tags. This printer offer you enhanced performance and wider compatibility, easy to load print media and ribbon, easy to operate.

Solution for retail POS, shelf labeling, product marking, healthcare patient safety, inventory management, shipping, high resolution print barcodes and graphics, food ingredient marking, office applications

Download PDF
Standard Features
Print methods Thermal Transfer & Direct Thermal
Features • Compatible to EPL, ZPL, ZPL II, DPL, TSPL
• 1 power switch, 2 buttons (Feed & Pause), 3 LEDs (Online, Error, Ribbon status)
• USB 2.0 High Speed 480Mbps, USB Host 2.0, for scanner or PC keyboard (factory option)
• RS-232 (factory option)
• Internal Bluetooth 4.0 (factory option)
• Internal Wi-Fi (factory option)
• ABS plastic
Physical Characteristics
Physical dimension 280mm(L) x 200mm(W) x 182mm(H)
Net Weight 2.5kg
Printer Specification
CPU 400 MHz, 32 bits, ARM9
Resolution 203 dpi/8 dots per mm
Memory 64 MB SDRAM
32MB / 128 MB Flash (factory option)
Print Width
104 mm (4.1″)
Print Speed
152mm (6″)/second
Media Sensors • Head open sensor
• Ribbon end sensor
• Black mark Reflective sensor (moveable)
• Gap transmissive sensor (moveable)
Media and Ribbon Characteristics
Media Width 20~118 mm (0.7″ ~ 4.6″)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Thickness
0.055 ~ 0.19 mm (2.16 ~ 7.4mil)
Media core diameter 25.4 mm (1″)
Label roll capacity 127 mm (5″) OD
Label Length 5 ~ 2,794mm (0.2″ ~ 110″)
Ribbon 300 meters long, max. OD 67 mm, 1″ core (ink coated outside)
Ribbon Width 30~110mm (1.18″~4.3″)
Operating Characteristics
Operating Temp. 5 ~ 40°C, 25 ~ 85% non-condensing
Storage Temp. -40 ~ 60°C, 10 ~ 90% non-condensing
Power External universal switching power supply
Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W
Environmental concern Comply with RoHS, REACH, WEEE
Options and Accesories
Accessories • Driver and software CD
• Quick start guide
• USB cable
• Power cord
• 1″ ribbon spindle x 2
• External universal switching power supply

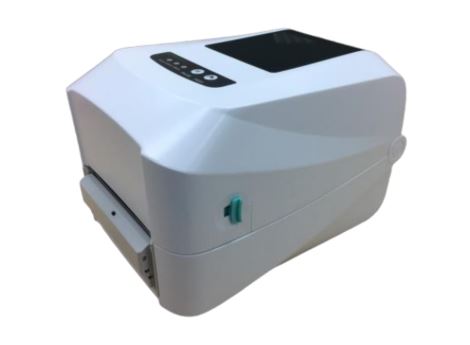

Optional • Peeler
• Guillotine cutter (full cut and partial cut)
