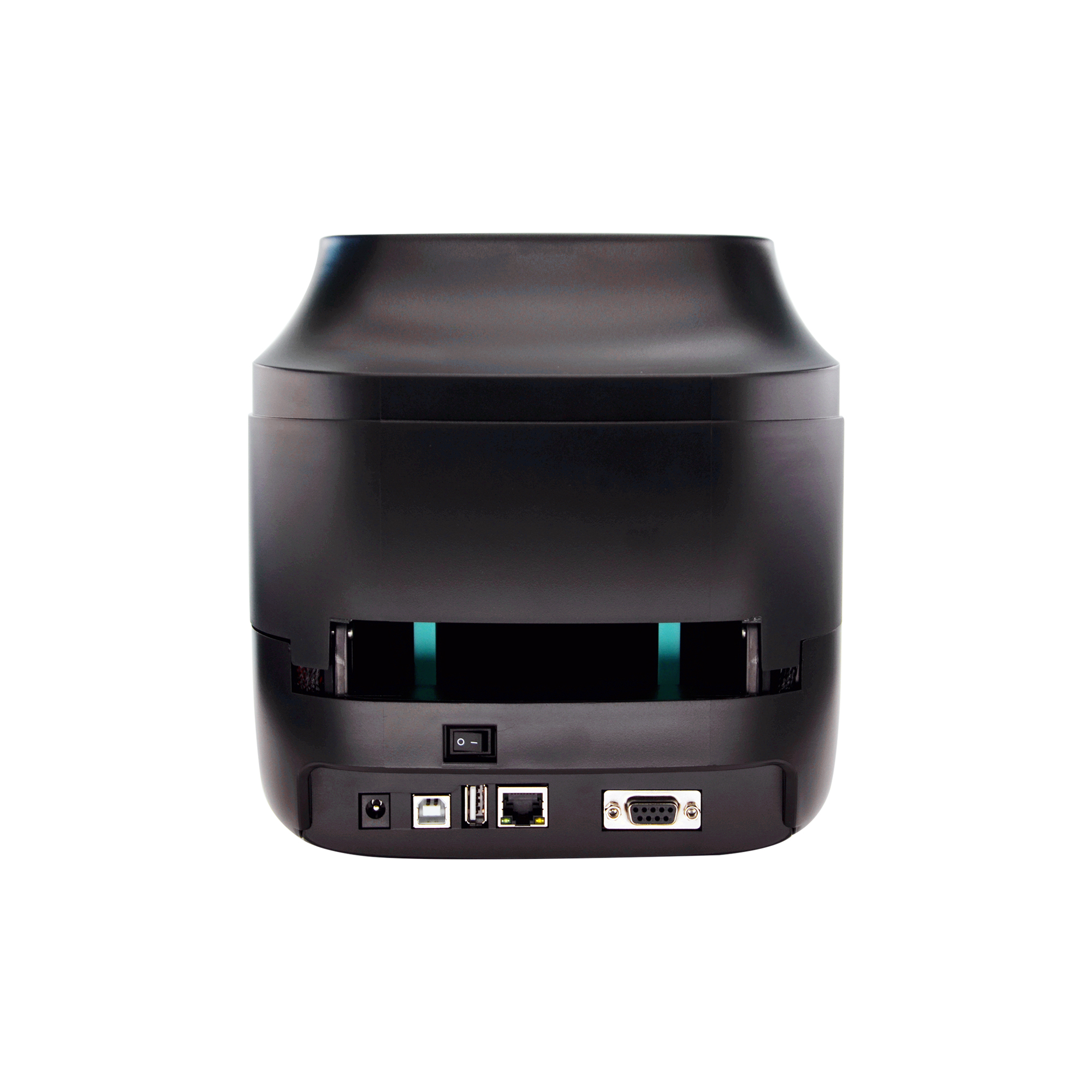

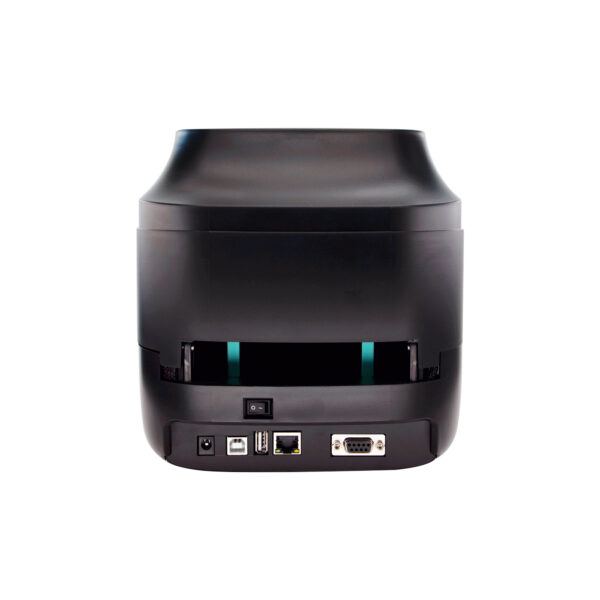

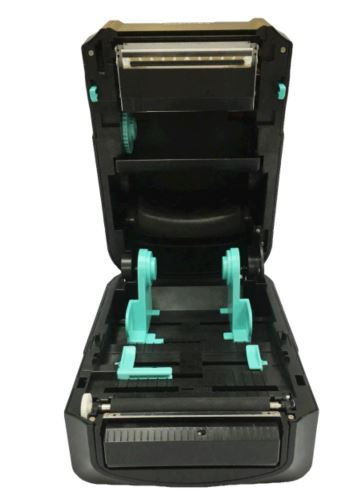

Gainscha 4″ Desktop Printer – GA-2408T

A desktop barcode printer is a type of printer designed to print barcode labels and tags. This printer typically small and compact, making them suitable for use on a desk or tabletop. They are commonly used in industries such as manufacturing, retail, healthcare, and logistics, where barcodes are used to track products and inventory.

Desktop barcode printer can be direct thermal or thermal transfer printing. Thermal print use heat to create an image on specially coated thermal paper, while thermal transfer print use a ribbon to transfer ink onto the label. Thermal transfer printer typically more durable and can produce higher quality labels.

Download PDF
Standard Features
Print methods Thermal Transfer & Direct Thermal
Features • Compatible to TSPL, EPL, ZPL, ZPL II, DPL
• 1 power switch, 1 button (Feed), 5 LEDs (Online, Error, Ribbon, Wi-Fi/Bluetooth, Communication status)
• USB 2.0 High Speed 480Mbps, USB Host 2.0, for scanner or PC keyboard
• Ethernet 10/100Mbps & RS-232
• Internal Bluetooth 4.0 (factory option)
• Internal Wi-Fi (factory option)
• Clamshell with double-walled plastic
Physical Characteristics
Physical dimension 280mm(L) x 190mm(W) x 198.3mm(H)
Net Weight 2.7kg
Printer Specification
CPU 400 MHz, 32 bits, ARM9
Resolution 203 dpi/8 dots per mm
Memory 128 MB SDRAM
128 MB Flash
Print Width
104 mm (4.09″)
Print Speed
Media Sensors • Head open sensor
• Ribbon out sensor
• Reflective sensor (moveable)
• Transmissive sensor (moveable)
Media and Ribbon Characteristics
Media Width 20~118 mm (0.7″ ~ 4.6″)
Media type Continuous, die-cut, black mark, fan-fold(outside wound), Linerless Label
Media Thickness 0.06~0.254mm (2.36 ~ 10 mil)
Media core diameter 25.4 mm (1″)
Label roll capacity 127 mm (5″) OD
Label Length 5 ~ 25,400 mm (0.2″ ~ 1,000″)
Ribbon 300 meters long, max. OD 67 mm, 1″ core (ink coated outside)
Ribbon Width 30~110mm (1.18″~4.3″)
Operating Characteristics
Operating Temp. 5 ~ 40°C, 25 ~ 85% non-condensing
Storage Temp. -40 ~ 60°C, 10 ~ 90% non-condensing
Operating Humidity 10% to 90% non-condensing
Power External universal switching power supply
Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W
Environmental concern Comply with RoHS, REACH, WEEE
Options and Accesories
Accessories • Driver and software CD
• Quick start guide
• USB cable
• Power cord
• 1″ ribbon spindle x 2
• External universal switching power supply
Optional Real time clock (RTC), Buzzer
