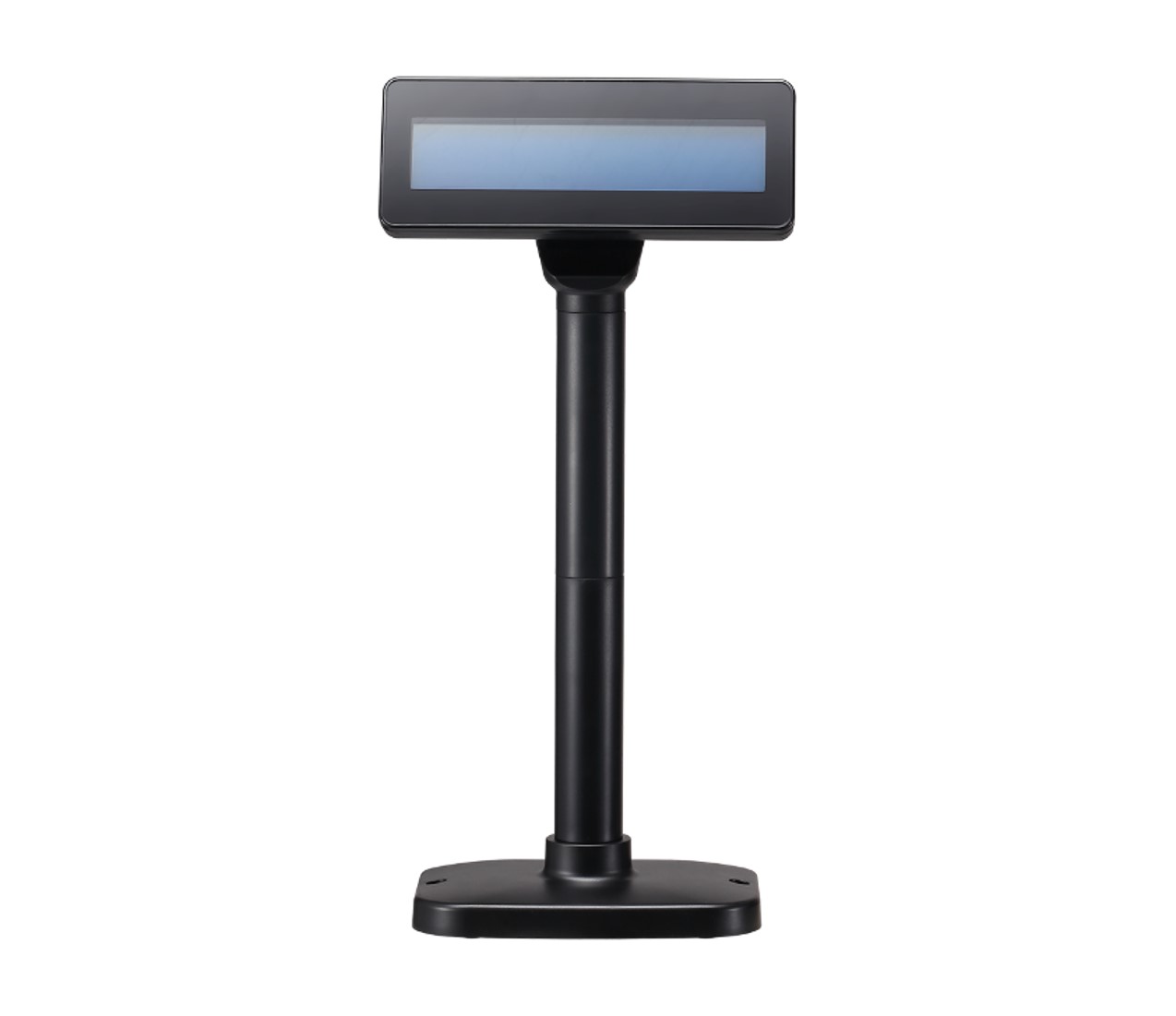

EC 3015 Pole Display

  • Vacuum Fluorescent Display
  • Supports 32 sets of international Characters
  • Innovative hinge design enables easy angle adjustment
  • Display adjustable range : 0-355° horizontally, 0-90° vertically
Add to Enquiry
Download PDF
Specification
Specification
Display Type  Vacuum fluorescent Display
Number of Characters 40 (20 columns × 2 lines)
Brightness 500~1000 cd/m²
Character Font 5 × 7 Dot Matrix
Character Type 95 Alphanumeric, 32 International Characters
Character Size 9.02(H) × 5.25(W) mm
Dot Size 0.86 × 1.05 mm
Download Characters 9 characters
Interface RS-232(Serial)/ USB
Command Set LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL, ICD2002, EZ-202, PL-200, PD3000
Power Supply DC  5~24V
Power Consumption 1.5W
MTBF 30,000 hrs
Reliablity- Mechanism >150km
Reliablity-Auto Cutter 1.5 Million Cuts
MTBF 360,000 Hours
Panel Dimension  (W x D x H) 200 W × 77.5 D × 31 H (mm)
Support Dimension  (H x Ø) 140 H x 34.5 Ø (mm)
Base Dimension  (W x D x H) 169.5 W × 98.5 D × 39 H (mm)
Weight 0.98KGs
Viewing Angle  Max 60
Horizontal Rotation Max. 355
