Cipherlab

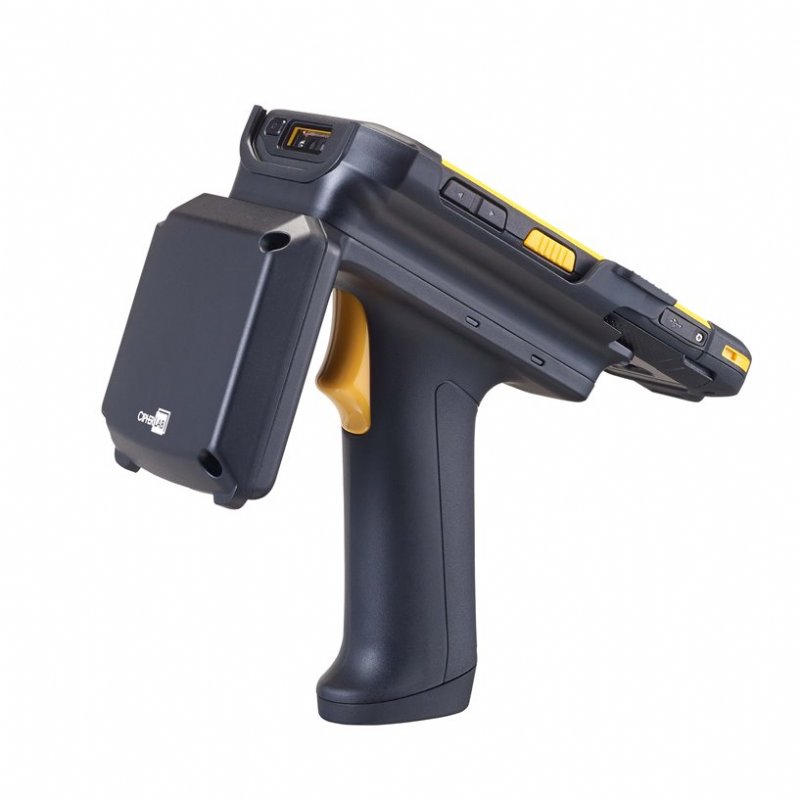

Cipherlab RS35 UHF RFID Reader

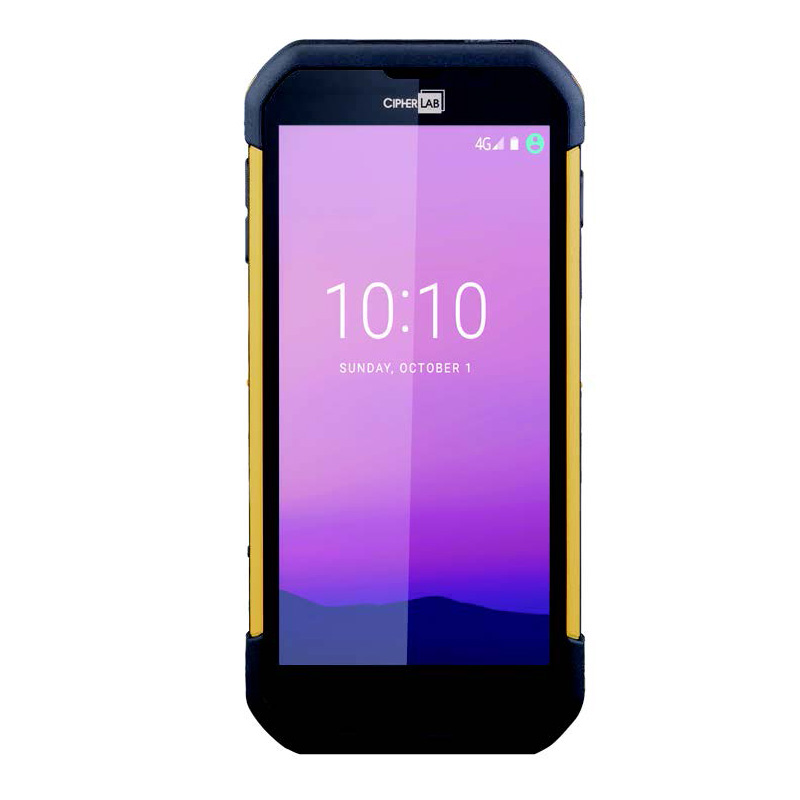

RS35 UHF RFID reader and the RS35 Touch Mobile Computer work perfectly together to support inventory control. It provides excellent reading sensitivity and accuracy, delivering a read rate of more than 900 tags per second. The RS35 UHF RFID reader, which supports all EPC Global Gen2v2 standards, has an excellent high-speed reading rate with a read range of over 8 meters. Moreover, it is available with software utilities including RFID Android SDK, EZConfig, and EZEdit. It is also worth mentioning that the RS35 UHF RFID reader can avoid duplicate tag reads when in either filter or comprehensive modes, which not only improves accuracy but also reduces users’ work of refining the duplicated data while doing stocktaking.

Add to Enquiry
Download PDF
Specification
Performance
Operating system Android 10 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11 with GMS
CPU Octa-core 1.8GHz
Memory 3GB x 32GB (Standard) / 4GB x 64GB (Optional)
Expansion Micro SD card slot with SDHC (up to 32GB) and SDXC (up to 2TB) support
SIM / SAM 2 SIM slots and 1 SAM slot
Operating power Replaceable and rechargeable 3.85V, Li-ion 4000mAh (normal voltage 3.85V / full charge 4.4V / balance mode full charge 4.1V)
Working hours Minimum 12 hours
Alert 1 tri-color LED, 1 bi-color LED, vibrator
Interface supported 6-pin I/O & USB 2.0 Type-C with OTG
Wireless communication
WWAN EDGE/GPRS/GPRS: 850/900/1800/1900
UMTS/HSPA+: B1/B2/B4/B5/B6/B8
FDD LTE: B1/B2/ B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28
TDD-LTE: 38/39/40/41
Support VoLTE and Worldwide Band
WLAN IEEE 802.11 a / b / g / n / ac / d / h / i
Additional WLAN Features

802.11r (fast roaming), 802.11 v / k (Voice-Enterprise), CCX (Cisco Compatible Extensions) compatible
WPAN Bluetooth® Class I, V4.2 dual mode, V2.1 with Enhanced Data Rate (EDR)
GPS GPS / A-GPS / GLONASS / Galileo / Beidou
Data capture
Barcode scanning 2D imager (SE4770)
2D imager (SE4770) tilting angle at 70°2
RFID HF RFID 13.56 MHz frequency which supports ISO14443A, ISO14443B, ISO15693, and Felica
Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
Camera Rear autofocus 13 megapixels with LED flash Front 5 megapixels
Physical characteristics
Display 5.5” HD + 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility, optically bonded to Touch Panel
Touch panel Corning® Gorilla® Glass , Capacitive touch with stylus or bare or gloved fingertip input, multi-touch CTP water proof support water rejection and wet finger
Interactive Sensor Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope
Keypad 1 programmable key, volume up and down keys, left and right trigger keys, power key
Audio Speaker, microphones with echo and noise cancellation
Size (LxWxH) 165 x 76.8 x 17.9 mm
Weight 288 g (with battery)
User environment
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F (without battery)
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Impact resistance IP65 & IP67, 500 tumbles at 0.5 m
Standard: 1.5 m (5 ft.) multiple drops onto concrete, 6 drops on each side
With rubber boot: 1.8 m (6 ft.) multiple drops onto concrete, 6 drops on each side
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
Regulatory compliance

CE, FCC, IC, NCC, TBL, JRL, SRRC, CCC, BIS, WPC, WEEE, RoHS, REACH, CA65, BC, NrCAN
RFID Specifications
Standard EPC Class1 Gen2 V2
Antenna Circularly polarized
RFID performance Fastest read rate: 900+ tags/sec
Read range : 8+ m (26+ ft)
Frequency range US: 902~928 MHz. EU: 865~868 MHz
TW: 922~928MHz. JP: 916~920MHz
AU: 920-924MHz. NZ: 920-924MHz
Battery 3.6v, 3000mAh Li-ion battery
Weight Without RS35: 366 g
Ruggedness 1.2m drop (With RS35). IP54
Software RFID Android Software Development Kit, EZConfig, EZEdit
