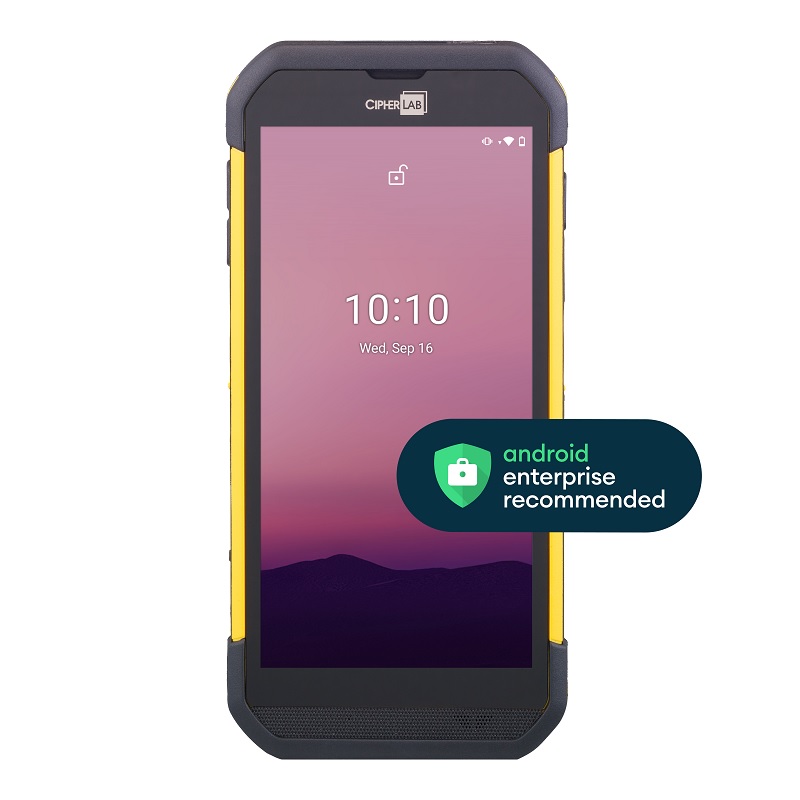

Cipherlab RS35 Android Mobile Computer

CipherLab’s RS35 is the device that brings enterprise-class features through a pocketable consumer-style smartphone with rugged designs and provides your enterprise and staff a better solution for daily tasks with efficiency. It streamlines workflow seamlessly with integrated scanning, powerful processing, intuitive touchscreen, and robust connectivity. The RS35 also provides seamless in-store communication with one of the most reliable Wi-Fi transmission on the market. On top of that, fast roaming and GPS/AGPS allow for accurate navigation and route planning which can fully optimize the customer’s experience. The RS35 takes great pride in its user-centric design. It makes the users feel familiar with the device and shorten the learning process. Its 5.5″ large screen also makes viewing information much easier and comfortable. With its versatile features, the RS35 gives businesses competitive advantages that help the mobile workforce get more work done in less time.

Download PDF
Specification
Performance
Operating system Android 10 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11 with GMS
CPU Octa-core 1.8GHz
Memory 3GB x 32GB (Standard) / 4GB x 64GB (Optional)
Expansion Micro SD card slot with SDHC (up to 32GB) and SDXC (up to 2TB) support
SIM / SAM 2 SIM slots and 1 SAM slot
Operating power Replaceable and rechargeable 3.85V, Li-ion 4000mAh (normal voltage 3.85V / full charge 4.4V / balance mode full charge 4.1V)
Working hours Minimum 12 hours
Alert 1 tri-color LED, 1 bi-color LED, vibrator
Interface supported 6-pin I/O & USB 2.0 Type-C with OTG
Wireless communication
WWAN EDGE/GPRS/GPRS: 850/900/1800/1900
UMTS/HSPA+: B1/B2/B4/B5/B6/B8
FDD LTE: B1/B2/ B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28
TDD-LTE: 38/39/40/41
Support VoLTE and Worldwide Band
WLAN IEEE 802.11 a / b / g / n / ac / d / h / i
Additional WLAN Features

802.11r (fast roaming), 802.11 v / k (Voice-Enterprise), CCX (Cisco Compatible Extensions) compatible

WPAN Bluetooth® Class I, V4.2 dual mode, V2.1 with Enhanced Data Rate (EDR)
GPS GPS / A-GPS / GLONASS / Galileo / Beidou
Data capture
Barcode scanning 2D imager (SE4770)
2D imager (SE4770) tilting angle at 70°2
RFID HF RFID 13.56 MHz frequency which supports ISO14443A, ISO14443B, ISO15693, and Felica
Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
Camera Rear autofocus 13 megapixels with LED flash Front 5 megapixels
Physical characteristics
Display 5.5” HD + 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility, optically bonded to Touch Panel
Touch panel Corning® Gorilla® Glass , Capacitive touch with stylus or bare or gloved fingertip input, multi-touch CTP water proof support water rejection and wet finger
Interactive Sensor Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope
Keypad 1 programmable key, volume up and down keys, left and right trigger keys, power key
Audio Speaker, microphones with echo and noise cancellation
Size (LxWxH) 165 x 76.8 x 17.9 mm
Weight 288 g (with battery)
User environment
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F (without battery)
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Impact resistance IP65 & IP67, 500 tumbles at 0.5 m
Standard: 1.5 m (5 ft.) multiple drops onto concrete, 6 drops on each side
With rubber boot: 1.8 m (6 ft.) multiple drops onto concrete, 6 drops on each side
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
Regulatory compliance

CE, FCC, IC, NCC, TBL, JRL, SRRC, CCC, BIS, WPC, WEEE, RoHS, REACH, CA65, BC, NrCAN
