Cipherlab

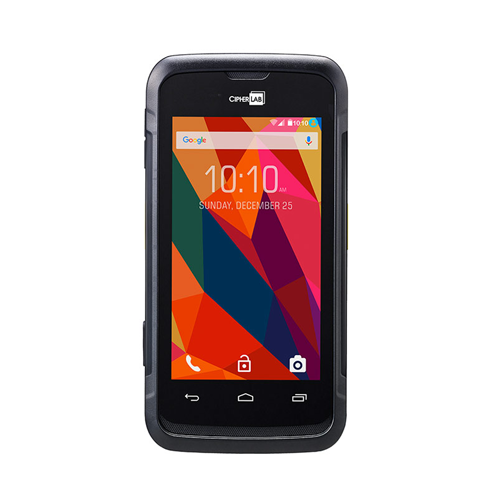

Cipherlab RS31 Android Mobile Computer

CipherLab’s RS31 Series is the ultimate solution that provides an enhanced user experience in field sales, field service, retail and healthcare. Not only does the RS31 bring next generation processing power, it also has versatile reader options to support efficient data capture. This next-gen powerful touch computer combines rugged designs and long-lasting operational power. On top of all the advantages, the RS31 series provide practical applications and accessories that helps increase productivity and take business into the future.

Download PDF
Specification
Performance
Operating system Android 6.0 / Android 7.0 (GMS)
CPU CPU Cortex A53 Quad-core 1.3GHz
Memory 16GB eMMC Flash/ 2GB LPDDR3 RAM
Expansion Micro SD card slot with SDHC support (up to 32GB)
SIM / SAM 2 SIM slots and 1 SAM slot
Operating power Replaceable and rechargeable 3.85V, 2960 mAh Li-ion battery (cell 3000 mAh)
Working hours 12 hours (laser)/ 10 hours (2D imager)
Alert Tri-color LEDs, vibrator, speaker
Interface supported USB 2.0 OTG and charging contact
Wireless communication
WWAN2 GSM/GPRS/EDGE/WCDMA/UMTS/HSDPA/HSUPA/HSPA+/LTE
GSM/GPRS/EDGE: 850 / 900 / 1800 / 1900
WCDMA/UMTS/HSDPA/HSUPA: 800 / 900 / 1900 / 2100
LTE: 800 / 900 / 1800 / 2100 / 2600
WLAN IEEE 802.11 a/b/g/n
WLAN security WPA, WPA2, WEP, TKIP, AES, PEAP, TTLS, TLS, PWD, SIM
WPAN Bluetooth® Class II, V4.1 BLE, V2.1 with Enhanced Data Rate (EDR)
Bluetooth® profile GAP, SDP , HSP, SPP, GOEP, OPP, HFP, PAN, A2DP, AVRCP, GAVDP, HID , PBAP
GPS Built-in GPS , GLONASS, BeiDou, AGPS
Data capture
Barcode scanning Linear imager / Laser / 2D imager
RFID HF RFID 13.56 MHz frequency which supports ISO14443A, ISO14443B, and ISO15693
Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
Camera Autofocus 8 megapixels with LED flash
Physical characteristics
Display 4.7” HD 720 (W) x 1280 (H), Transmissive IPS LCD, sunlight visibility, DragontrailTM glass
Touch panel Capacitive touch with stylus or bare or gloved fingertip input
Interactive Sensor Technology Accelerometer, Light sensor, proximity sensor, e-compass
Keypad Dedicated scan key, 4 programmable keys, volume up and down keys, left and right trigger keys, power key
Audio Speaker, dual array microphones with echo and noise cancellation
Size (LxWxH) 159 x 80 x 17.3 mm
Weight Under 260 g (2D imager with battery)
User environment
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Impact resistance 1.2 m (4 ft.) multiple drops onto concrete, 6 drops on each side / IP67 / 150 tumbles at 0.5 m
With protective boot: SGS certified 1.5 m (5 ft.) multiple drops onto concrete, 6 drops on each side / IP67 / 300 tumbles at 0.5 m
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
Regulatory compliance CE, NCC, CCC, SRRC, ANATEL, BIS, WPC
RoHS, REACH, WEEE, ErP, China RoHS
