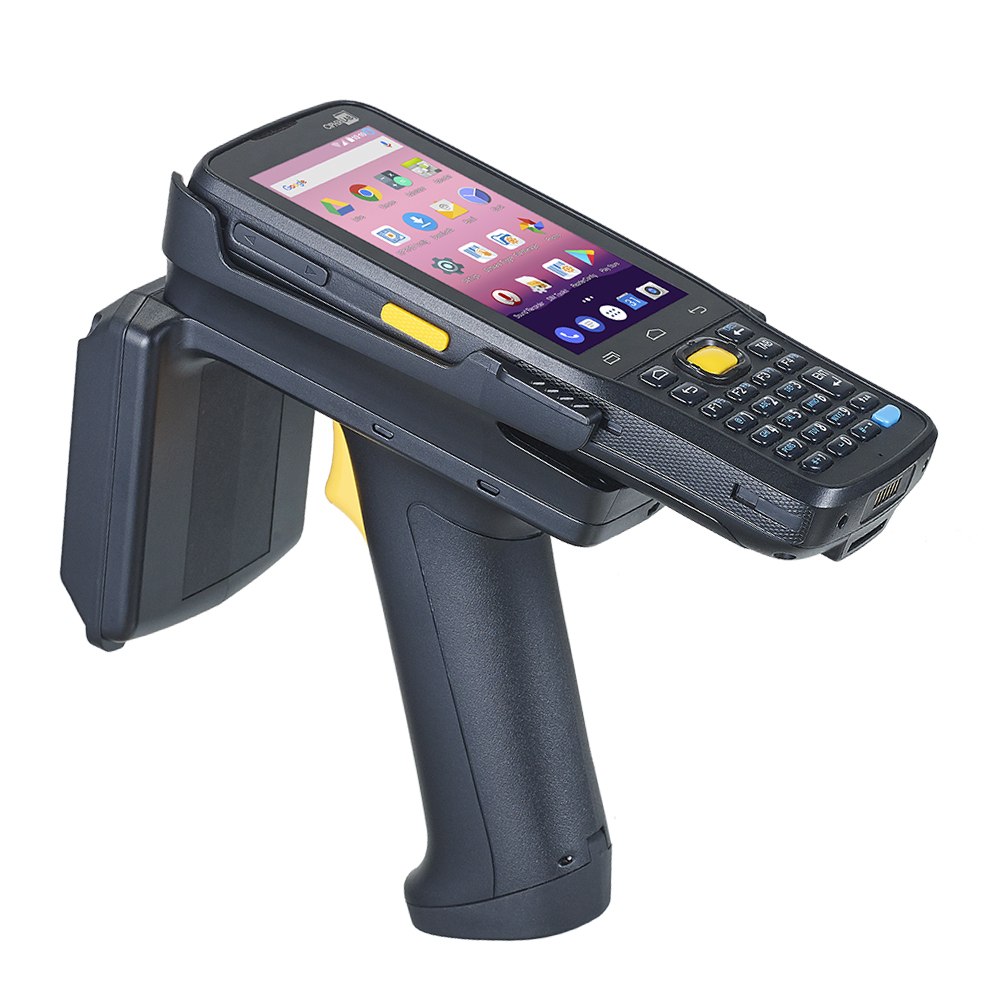

Cipherlab RK25 UHF RFID Reader

CipherLab’s RK25 UHF RFID reader is specially made to upgrade your RK25 functions. With the RK25 UHF RFID reader, your device quickly gains the flexibility to switch between RFID and 1D/2D barcode data collection. Its ability to quickly read large amounts of tags is perfect for retail storage and warehouse applications. Being
rugged with efficient inventory management, the RK25 UHF RFID reader also has the long-lasting power to sustain a full working day. Combined with great software support, the RK25 UHF RFID reader makes efficient productivity quick and simple.

Add to Enquiry
Download PDF
Specification
Physical characteristics
Compatible host CipherLab RK25 mobile computer
Communication Electrical 8-pin connection
Dimension Without RK25:152.4 mm x 85.3 mm x 158.8 mm
With RK25:181.4 mm x 85.3 mm x 162.9 mm
Weight Without RK25:353.4 g
With RK25:632.7 g
Power Li-ion battery pack
Typical voltage:3.6V
Typical capacity:3000mAh
Notification R/ G/ B LED
Input Trigger key
RFID performance
Standard EPC Class1 Gen 2 v2
RF module Impinj R2000 high performance UHF RFID chipset solution
Antenna Circularly polarized
Max data rate 700+ tags / sec
Nominal read range 8+ m (26+ ft)
Frequency range US : 902~928 MHz
EU : 865~868 MHz
TW : 922~928 MHz
JP : 916~920 MHz
AU : 920~924 MHz
NZ : 920~924 MHz
IN : 865.7~866.9 MHz
Morocco: 867.7~867.9 MHz
User environment
Drop 1.2m (With RK25)
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Sealing IP54
Charging time Full charged time approximate 6 hrs (charge with RK25 data terminal)
ESD ± 15kV air discharge / ± 8kV direct discharge
Certifcate CE, FCC, NCC, IC, JRL, Telec, EAC, RCM, WPC
