Cipherlab

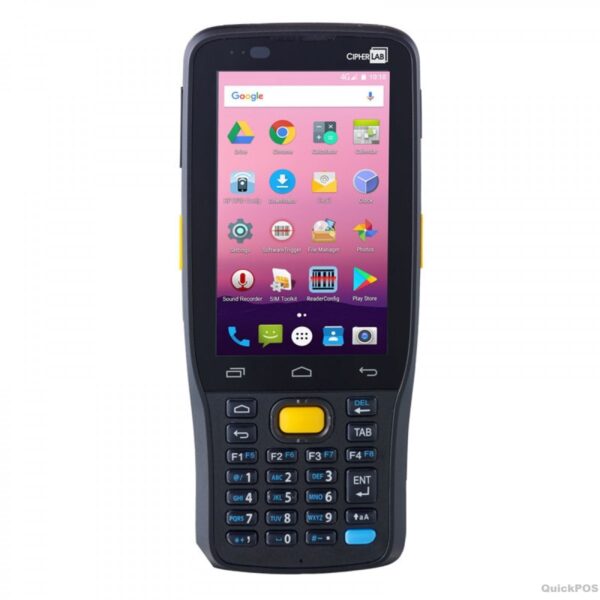

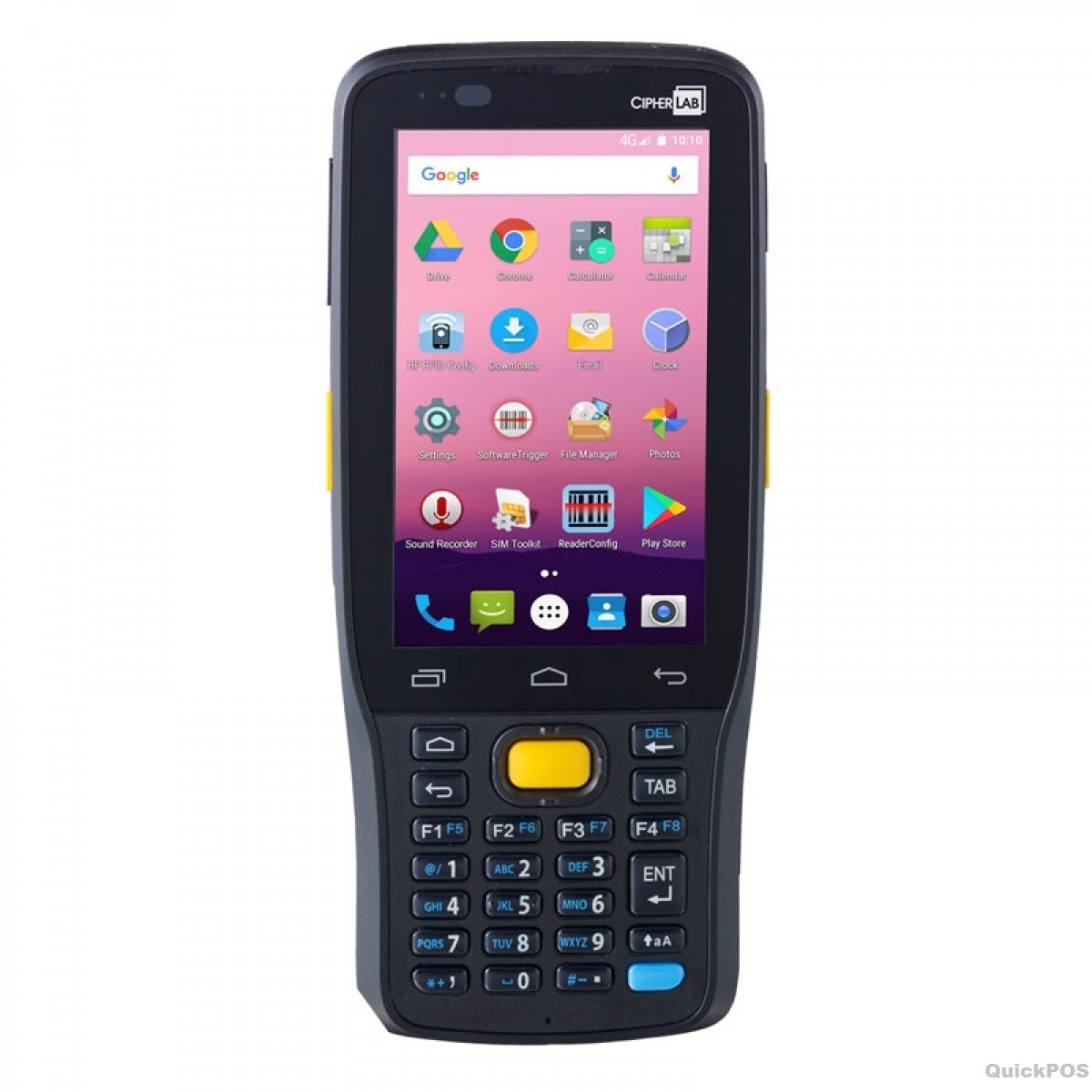

Cipherlab RK25 Mobile Computer

CipherLab RK25 is equipped with numeric keypads to fulfill diverse user behaviors, especially for those who are used to non-visual data entry operation, working in rugged outdoor conditions, and need custom configured buttons. Evolving from smartphones, its 4” display with multi-touch panel also ensures readability to further accomplish its friendly operation design. Built for data intensive environments, the RK25 is crafted with up-to-date features of the latest quad-core 1.4 GHz processor and IEEE 802.11 a/b/g/n/ac dual band communication to allow users to simplify complicated job processes. On top of that, the RK25’s industrial ruggedness and comprehensive offering in accessories and software empower users to thrive in their daily tasks.

Add to Enquiry
Download PDF
Specification
Performance
Operating system Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS
CPU Quad-core 1.4 GHz Cortex A53
Memory 2GB RAM / 16GB Flash
Expansion Micro SD card slot with SDHC support (up to 32GB)
SIM / SAM 1 SIM slot and 1 optional SIM/SAM slot
Operating power Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery
Working hours minimum 8 hours (2D imager)
Alert Tri-color LEDs, vibrator, speaker
Interface supported USB 2.0 OTG and charging contact
Wireless communication
WWAN2 GSM: Quad Band (850/900/1800/1900Mhz)
TD-SCDMA: Band34, Band39
WCDMA: Band1, Band2, Band5, Band8
TDD-LTE: Band38, Band39, Band40, Band41
FDD-LTE: Band1, Band2, Band3, Band5, Band7, Band8, Band20
WLAN IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band
WLAN security WPA, WPA2, WEP, TKIP, AES, PEAP, TTLS, TLS, PWD, SIM
WPAN Bluetooth® Class II, V4.0 / V4.1/ V4.2 BLE, V2.1 with Enhanced Data Rate (EDR)
Bluetooth® profile GAP, SDP, HSP, SPP, GOEP, OPP, HFP, PAN, A2DP, AVRCP, GAVDP, HID, PBAP
GPS GPS, Galileo, GLONASS, BeiDou, AGPS
Data capture
Barcode scanning Linear imager / 2D imager / Mid-Range 2D imager
RFID (Optional)3 HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693
Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
Camera (Optional)3 Autofocus 8 megapixels with LED flash
Physical characteristics
Display 4” WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD
Touch panel Capacitive touch with stylus, bare fingertip, and gloved fingertip inputs
Interactive Sensor Technology Accelerometer, Light sensor, proximity sensor, e-compass, Gyroscope
Keypad 25-key/28-key numeric keypads with assignable keys, volume up and down keys, left and right trigger keys, power key
Audio Speaker, dual array microphones with echo and noise cancellation
Size (LxWxH) 168 x 73.8 x 26 mm
Weight 292 g (2D imager with battery)
User environment
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Impact resistance Standard: 1.5 m (5 ft.) multiple drops onto concrete, With rubber boot: 1.8 m (6 ft.) MIL-STD-810G
IP65 / 300 tumbles at 0.5 m
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
Regulatory compliance CE, NCC, CCC, SRRC, ANATEL, BIS, WPC
RoHS, REACH, WEEE, ErP, China RoHS
