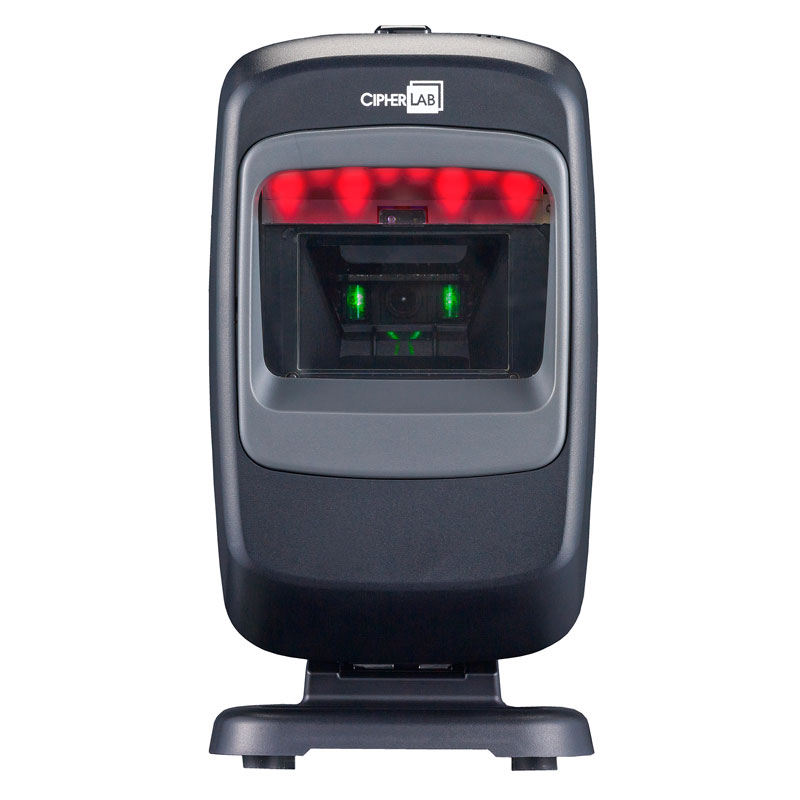

CipherLab Omnidirectional Presentation Scanner

The 2220 model is an omnidirectional presentation scanner that combines features of 1D/2D barcode scanning and UHF RFID reading. It is capable of instantly reading RFID tags, up to 20 cm reading range, and identify products clearly for quick and easy checkout.

Add to Enquiry
Download PDF
Specification
Performance
Optical Sensor CMOS Image Sensor 1280 x 800 pixels
Light source LED RED 620 nm
Resolution 1D – 3mil / PDF417 – 5mil / 2D – 7mil
Depth of field Code 39 3 mil: 0 to 5 cm / 0 to 2.0 in.
QR Code 7 mil: 0.5 to 2.5 cm / 0.2 to 1.0 in.
EAN13 13 mil: 0 to 20 cm / 0 to 7.9 in.
PDF417 5mil: 1 to 6 cm / 0.4 to 2.4 in.
Print Contrast (Minimum) 25%
Ambient illumination 100,000 Lux
Hands-free scanning Presentation mode
Programmable features Data editing, interface selection, symbology configuration
Data Capture
Barcode Scanning 2D Imager
RFID Frequency: North America: 902 – 928 MHz,
Europe: 865 – 868 MHz
Taiwan: 922 ~ 928MHz
Support Tag Type: ISO 18000-6C, EPCglobal Class1 Gen2 (Standard), EPCglobal Class1 Gen2V2 (Standard)
Physical characteristics
Trigger 1 Trigger for handheld operation
Indicators Magnetic Buzzer (Adjustable Tone and Volume), Good Read LED
Size (LxWxH) 80 x 80 x 150 mm / 3.2 x 3.2 x 5.9 in
Weight 380g / 13 oz.
User environment
Operating temperature 0 °C to 40°C / 32°F to 104°F
Storage temperature -40°C to 60°C / -40°F to 140°F
Humidity (non-condensed) Operating: 10% ~ 90% / Storage: 5% ~ 95%
Impact resistance 1.5 m (4.9 ft) multiple drops onto concrete; IP52
Electrostatic discharge ± 15kV air discharge / ± 8kV direct discharge
Electrical Input Voltage : 5V 2A Max
Power Consumption : 350mA / 1A
