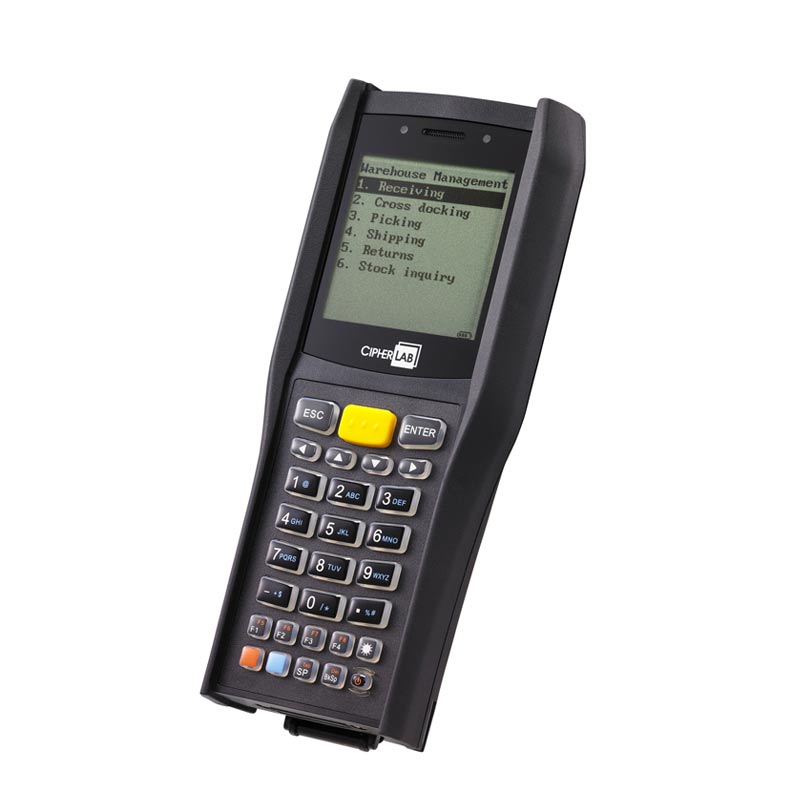

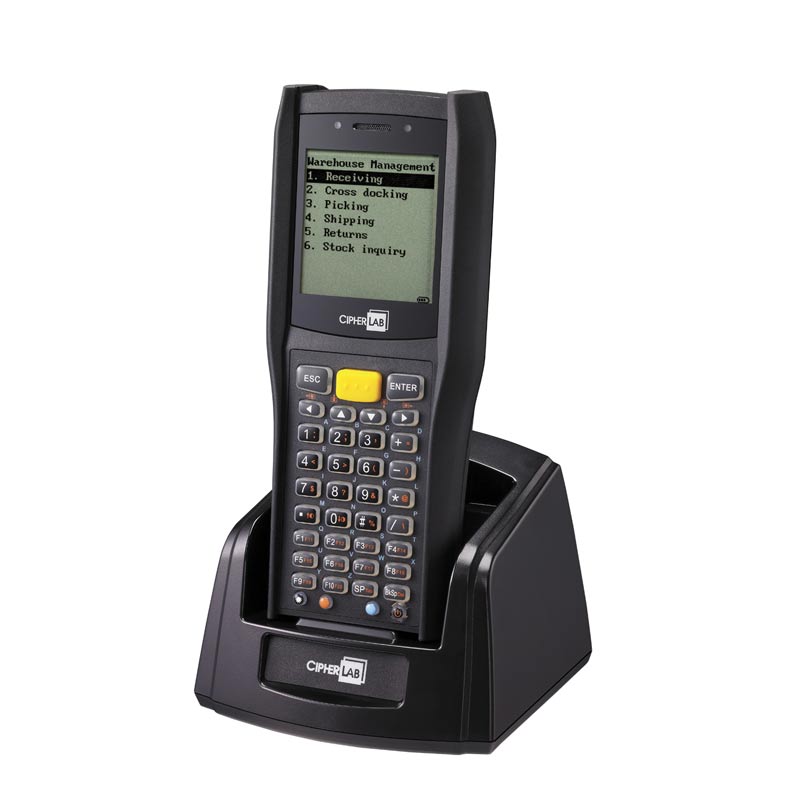

Cipherlab CPT-8400 Data Collector

8400 series puts powerful mobile applications in the hands of workers who can use this smart handheld mobile computer with fast and easy data access. Advanced power efficiency ensures that your work isn’t interrupted by a power failure or data loss. An optimal combination of functionality, value, and features in a rugged, ergonomic form, the 8400 series is ideal to accelerate complicated work and quickly deploy integrated applications using terminal emulation. For warehousing stock control, retail in-store, DSD, or field sales force automation, the 8400 series is clearly the right choice for managing the toughest operations.

Download PDF
CPU 32-bit
Memory 4 MB Flash / 4 MB or 16 MB SRAM
Operating power Rechargeable Li-ion battery: 3.7V 1800 mAh
Working hours 110 hours
Data retention 25days
Alert Two dual-color LEDs (red / green, blue / green), vibrator, volume programmable beeper
Barcode scanning Linear imager / Laser / 2D imager
Physical characteristics
Display 160 x 160 display, white LED backlight
Keypad 29 or 39 rubber keys, white LED backlight
Size (LxWxH) 170.6 x 72.1 x 40.6 mm / 6.7 x 2.8 x 1.6 in.
Weight 295 g / 10.4 oz. (incudes battery)
User environment
Operating temperature -10°C ~ 55°C / 14°F ~ 131°F
Storage temperature -20° to 70° C / -4° to 158° F
Humidity (non-condensed) Operating: 10% ~ 90% / Storage: 5% ~ 95%
Impact resistance Multiple 1.5 m drops onto concrete, 5 drops on each side, 1000 tumbles at 100 cm, IP54
Electrostatic discharge ± 15kV air discharge / ± 8kV direct discharge
EMC regulation BSMI, CE, RCM, FCC, IC, NCC
