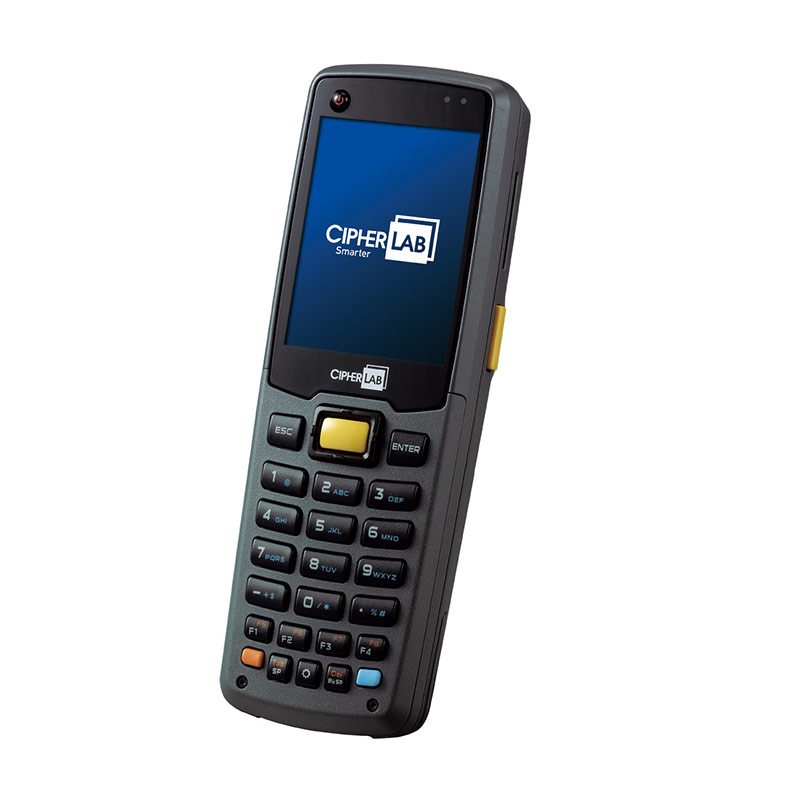

Cipherlab 8600 Series HF RFID Mobile Computer

8600 series mobile computer is designed to meet the demands of the warehousing, distribution center and manufacturing industry. This new handheld terminal operates with CipherLab Operating System (cOS), which reduces redundant programs and applications for users. Its color display also further improves readability and support rich data management. Along with value-added software, the 8600 series mobile computer is an ideal companion for your work force.   Designed with top durability and able to capture data from harsher environments. Versatile reader options including optional RFID reader allows for wider data collection.

Download PDF
CPU ARM Cortex-M3
Program Memory 16MB Flash
Data Memory 8MB / 16MB SRAM
Expansion micro SD slot with SDHC support
Operating power Rechargeable 3.7V 1100mAh / 2200mAh Li-ion battery
Working hours 32 / 64 (1100mAh / 2200mAh)
Data retention 25days
Alert Two programmable dual-color LEDs (red / green, blue / green), vibrator
Speaker 0.5W, 80dB@2KHz
Barcode scanning Linear imager / Laser / 2D imager
RFID Frequency: 13.56MHz, Support tags: ISO 14443A, ISO 14443B, ISO 15693
Wireless Communication
WLAN IEEE 802.11 b/ g/ n
WPAN Bluetooth® V4.0 Dual mode (2.1+EDR / BLE)
Bluetooth® profile SPP, DUN, HID
GPS GPS JN3, Internal antenna (optional)
Physical characteristics
Display 2.83’’ color LCD, 240 x 320 pixels, TFT with programmable LED backlight

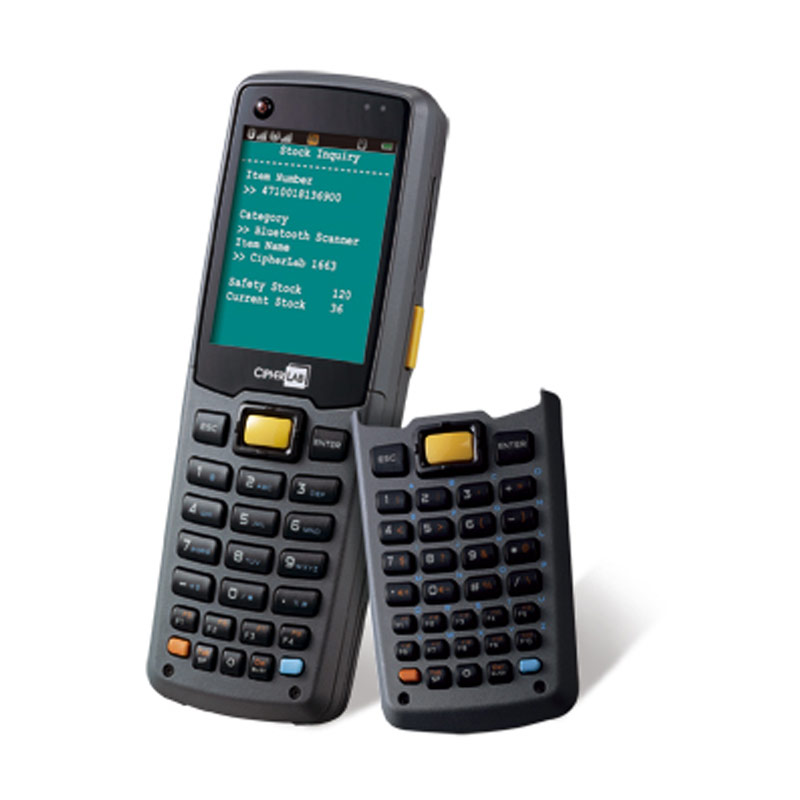

Keypad Swappable, 29 keys / 39 keys, programmable LED backlight
Size (LxWxH) 170 x 60 x 30 mm
Weight Approx. 240g
User environment
Operating temperature -10°C ~ 60°C / 14°F ~ 140°F
Storage temperature -20° to 70° C / -4° to 158° F
Humidity (non-condensed) Operating: 10% ~ 90% / Storage: 5% ~ 95%
Impact resistance Multiple 1.8m / 6ft. drops onto concrete, 5 drops on each side, 1,000 tumbles at 1m / 3ft, IP65
Electrostatic discharge ± 15kV air discharge / ± 8kV direct discharge
Regulatory Compliance FCC, CE, BSMI, NCC, RCM, IC, CCC, SRRC, JRL, RoHS, REACH, WEEE, ErP
