Argox

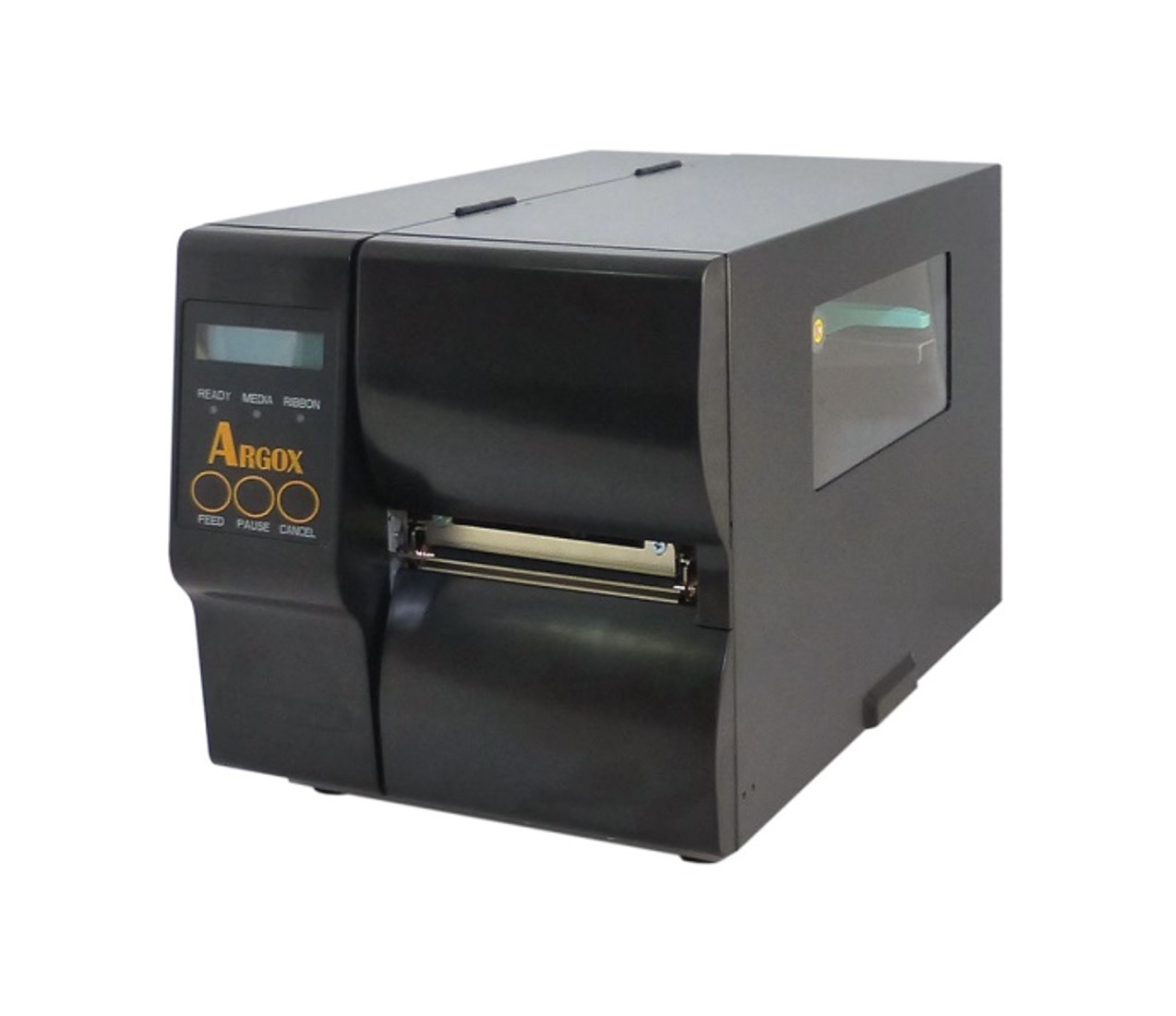

Argox IX4 240 Barcode Printer

With new mechanical design, iX4-240 supports a large 8.26 inch outer diameter label roll and up to 450 meter ribbon capacity.Featuring 6 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.The iX4-240 has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.

Download PDF
Specification
Print Specifications
Printing Method Direct Thermal & Thermal Transfer
Printing Resolution 203 dpi (8 dots/mm)
Printing Speed Max. 6 ips
Printing Length Max. 100”(2540 mm)
Printing Width Max. 4.13”(105 mm)
Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
CPU Type 32 bit RISC microprocessor
Consumables Specifications
Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm)
8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3mm).
Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Fonts & Symbologies
Fonts Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation
Soft fonts are downloadable
Ability to print any Windows True Type font easily. Support scalable font
1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI
Emulation PPLA, PPLB, PPLZ
Interface Characteristics and Integration
Operation Interface LED indicator x 3, Button x 3
Communication
Interface
USB device, RS-232, Ethernet, USB host x 2
Software-label Editing Windows Driver for Windows Vista/Win7/Win8/Win10, BarTender® from Seaguall Scientific
Software-Utility Printer Tool
Database Link Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Operating & Environment Characteristics
Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 25% ~ 85% non-condensing,
Storage Temperature: -4°F~122°F (-20°C~50°C), , 10% ~ 90% non-condensing
Agency Listing CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI
Physical Characteristics
  • Printer Dimensions : W 257 mm x H 263 mm x D 432 mm
  • Printer Weight : 29lbs (13 kg)
