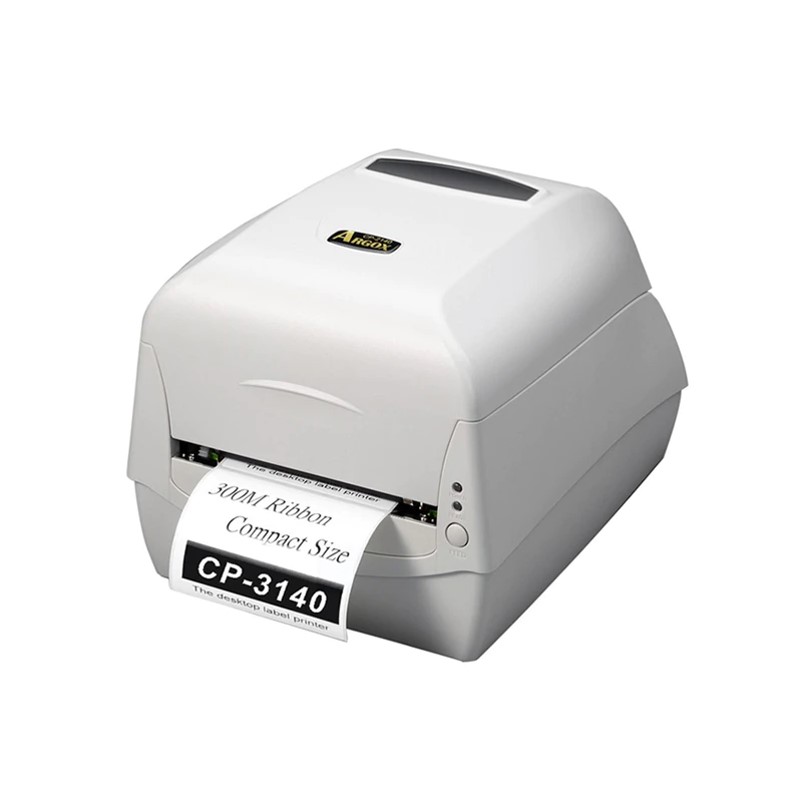

Argox CP-3140 Printer
The CP-3140 compact desktop printer offers 300dpi resolution and larger memory for high quality printing. The high print resolution is perfect for producing text and graphics for applications such as clothing labels, photos on hospital I.D. bracelets, and labels for small retail items such as jewelry.
Specification
Printer Specification
| Memory | 8MB DRAM(5MB user available) 8MB Flash ROM(6MB user available)) |
|---|---|
| CPU | 32 bit RISC microprocessor |
| Sensors | Media gap & black line Reflective sensor x 1 (movable)& Transmissive sensor x 1 (Center fixed) / Head open switch / Ribbon end sensor |
| Operation Interface | LED indicator (Power/Ready)x 2, Button(Feed) x 1 |
| Communication Interface | Parallel, USB, RS-232(Baud rate: 2400~115200 bps) |
| Emulation | CP-2140, CP-2140E, CP-3140: PPLA, PPLB CP-2140Z: PPLZ |
| Dimensions | L 273mm x W 225mm x H 186mm |
| Weight | 2.1kg |
| Power Source | Universal Switching Power Supply AC Input: 100~240V,1.5A, 50-60Hz, DC Output: 24V, 2.91A Typical, 70W Max. |
| Operation Environment | Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) |
Printing Specification
| Printing Method | Direct Thermal & Thermal Transfer |
|---|---|
| Printing Resolution | 300 dpi(12 dots/mm) |
| Printing Speed | 1~up to 4ips (25.4~101.6mm/s) |
| Printing Length | Max 50”(1270mm) / Min 0.2”(5mm) |
| Printing Width | Max 4.1”(104mm) |
Fonts / Graphics / Symbologies
| Fonts | Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0° ~ 270° rotation Soft fonts are downloadable |
|---|---|
| 1D Barcodes | PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/ EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit addon/ 5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar PPLZCode39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sun, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sun digit, EAN-8, Codabar, EAN-13, Plessey, GS1 Data bar |
| 2D Barcodes | PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes |
| Graphics | PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX, Binary raster, BMP and GDI PPLZ: GRF, Hex and GDI |
Software Specification
| Software – Label editing | Windows Seagull Driver, BarTender |
|---|---|
| Software – Utility | Printer Utility Font Utility |
Media and Ribbon Characteristics
| Media Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label |
|---|---|
| Media | Max Width: 4.3”(110mm) Min Width: 1”(25.4mm) Thickness: 0.0025”~0.01”(0.0635~0.254mm) Max roll capacity(OD): 5”(127mm) / Core size: 1”(25.4mm) Max roll capacity(OD): 4.5”(114.3mm) / Core size: 0.5”(12.7mm) (optional) |
| Media Stacker | Standard |
| Ribbon | Ribbon roll – max OD: 2.6”(67mm) Ribbon Length: max 300m Core size – ID: 1”(25.4mm) Ribbon Width: 1”~4” Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in available) |
Optional Items
• Cutter
• Stacker
• RTC Card
• ArgoKee
