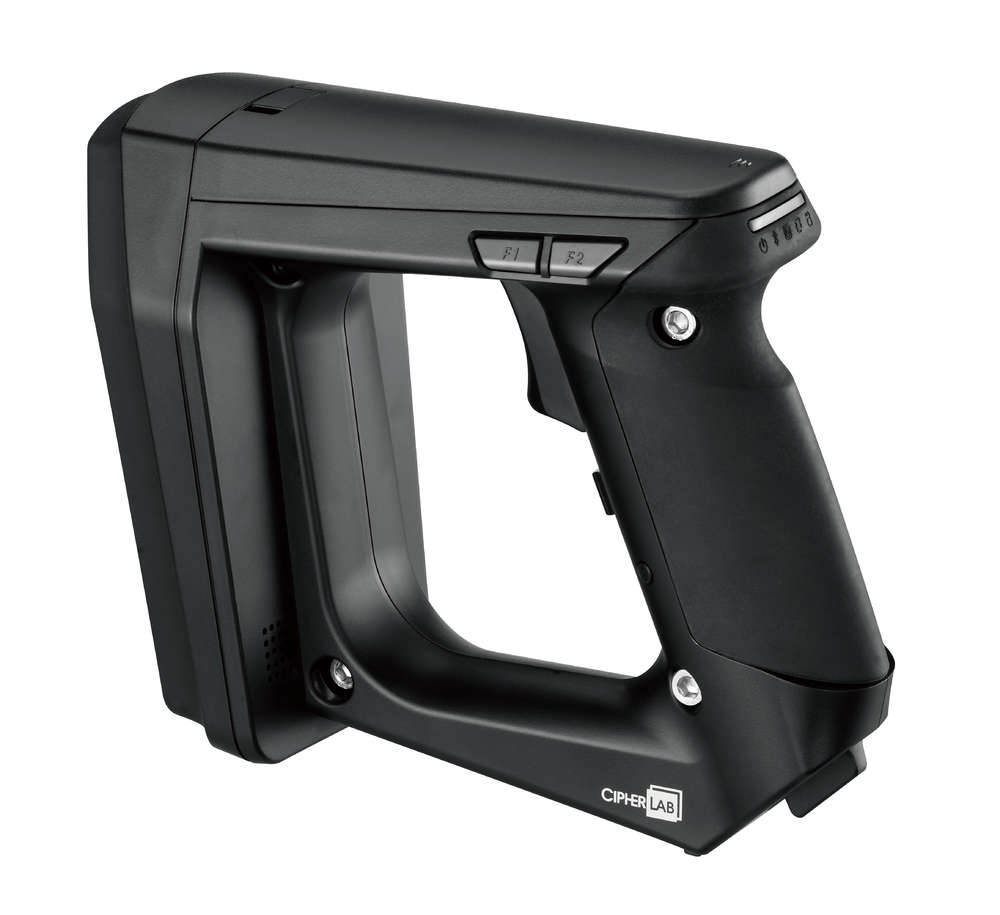

Cipherlab 1862 HandHeld UHF Reader

CipherLab’ s 1862 RFID handheld reader is carefully crafted to integrate RFID technology into your operation
easily. Along with up to 5 m RFID reading range and Bluetooth® pairing versatility to existing mobile devices, the 1862 also comes equipped with powerful software utilities for easy configuration and customization for user-friendliness. More than just these advantages, its IP64 rugged design and custom mounts for different mobile
devices also provide non-stop productivity and effortless
one hand operation to produce results with comfort.

Add to Enquiry
Download PDF
Specification
Specification
CPU ARM Cortex-M3 32 bit
Memory 4 MB
Operating power Rechargeable 3.7V 2500 mAh Li-ion battery
Working hours 8 hours
Alert Tri-color LEDs (red / blue / green), vibrator, beeper
Keys 2 function keys, 1 trigger key, 1 toggle switch
Dimensions (L x W x H) 163.5 x 85.7 x 146.5 mm
Weight (w/ battery) 520 g / 18.3 oz.
RFID performance
Frequency  865 ~ 868 MHz / 902 ~ 928 MHz
Max. output power3 30 dBm
Antenna Internal antenna
Support tags EPCglobal UHF Gen 2, ISO 18000-6c
Read / Write range2 Up to 5 m (16.5 ft.) / Up to 1.5 m (4.9 ft.)
User environment
Drop 1.2m (With RK25)
Operating temperature -10 °C to 50 °C / 14 °F to 122 °F
Storage temperature -30 ºC to 70 ºC / -22 ºF to 158 ºF
Humidity Storage 5% to 95% / Operating 10% to 90%
Impact resistance Multiple 1.5m / 5 ft. drops onto concrete, 5 drops on each side / 1,000 tumbles at 1 m (3.3 ft.) / IP64
Electrostatic discharge ± 15kV air discharge / ± 8kV direct discharge
EMC regulation CE, RoHS, REACH, WEEE, ErP, FCC, NCC
