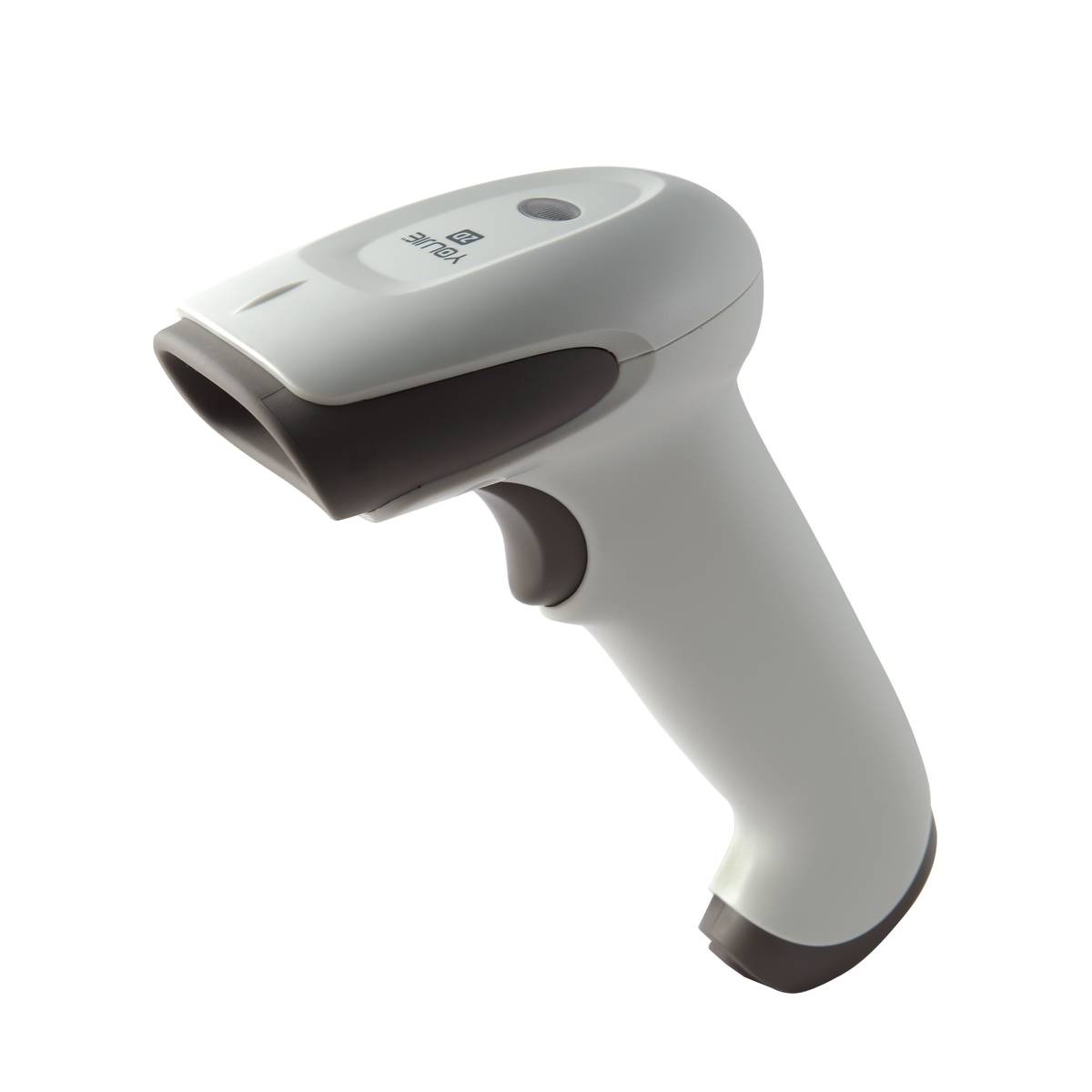

Youjie YJ 4600 2D Area Imager

The YJ4600 is a general purpose area imaging scanner targeting middle to low segments of the 2D bar code scanning market. With competitive pricing, outstanding performance, ergonomic design, and optimum functionality, YJ4600 meets the demands of a wide variety of applications. If you are looking for a cost effective but high performance area imaging scanner, the YJ4600 will be your ideal choice.

Add to Enquiry
Download PDF
Specification
Mechanical / Electrical
Dimensions (length x width x height): 170mm x 66mm x 85mm
Weight: 120g
Input Voltage: 4 ~ 5.5 V DC
Operating Power: 2W; 400 mA @ 5V – typical
Standby Power: 0.45w, 90mA@ 5V – typical
DC Power: Class2; 5.2VDC@1°
EMC: EN55022, EN55024 class B
LED Safety Certification: IEC62471
CB: IEC60950
Comprehensive Certification: GOST-R (Russia), CE
Environmental
Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 60°C
Humidity: 5% – 95% relative humidity, non-condensing
Light Levels: 0 – 100,000LUX
Drop: Designed to withstand falls from a height of up to 1.0
Environmental Sealing: Sealed to resist airborne particulate contaminants
IP Level: IP40
Motion Tolerance: 100mm per second, 13 mil UPC
Performance
Light Source: White LED
Sight: Red LED, 617nm
Visual Indicators: Green = decoding successful; Red = decoding failed
System Interface: KBW, USB
Scan Pattern: Image
Scan Angle: Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °
Print Contrast: Minimum 35% contrast
Decoding: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
