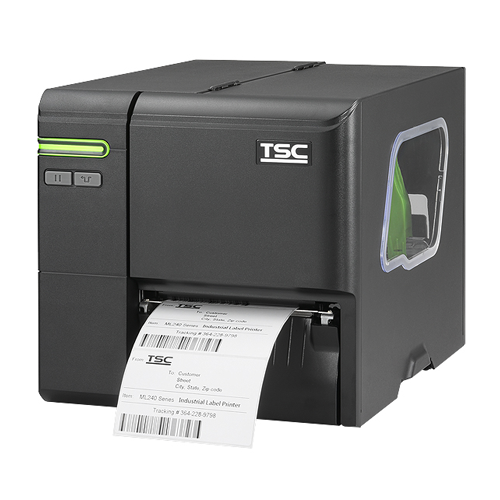

TSC ML 240 Series Industrial Barcode Printer

TSC ML240 Series is a brand new generation of industrial barcode label printers. The light industrial ML240 Series features ease of use, intuitive color GUI display, noise-reduced printing, and self-diagnostic TPH Care. The ML240 Series has a durable and flexible design and does not require special tools for performing common service and maintenance.

Its compact footprint is perfect for crowded work environments. The ML240 Series is designed for durability while producing high quality printed labels. With its enhanced design and printing algorithm, the noise level from printing operation is dramatically reduced. The adjustable thermal print head and self-diagnostic TPH Care mechanism ensure optimal print quality regardless of the application or label design.

Download PDF
Specification
Specification
Resolution 8 dots/mm (203 DPI)
Printing method Thermal Transfer & Direct Thermal
Max. print speed 152 mm (6”)/second
Max. print width 108 mm (4.25”)
Max. print length 2,794 mm (110”)
Enclosure Die-cast print mechanism/Metal cover with large media window
Physical dimension 248 mm (W) x 245 mm (H) x 330 mm (D)
9.76” (W) x 9.65” (H) x 12.99” (D)
Weight 7.6 kg (16.76 lbs)
Label roll capacity 139.7 mm (5.5“) O.D., 1” or 1.5” I.D core
Ribbon 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside)
Ribbon width 40 ~ 110 mm (1.6” ~ 4.3”)
Processor 32-bit RISC CPU
Memory 8 MB Flash memory
16 MB SDRAM
Interface USB 2.0
Internal Bluetooth 4.2 MFi (factory option)
Power Internal universal switching power supply
Input: AC 100~240V, 3.0A, 50~60Hz
Output: DC 24V, 8.33A, 200W
Operation switch, button 2 buttons (Pause, Feed)
Sensors Gap transmissive sensor (position adjustable)
Black mark reflective sensor (position adjustable)
Ribbon end sensor
Head open sensor
Internal fonts 8 alpha-numeric bitmap fonts
Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code 1D bar code : Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11
2D bar code : PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Font and barcode rotation 0, 90, 180, 270 degree
Printer language TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 118 mm (0.8” ~ 4.7”)
20 ~ 114.3 mm (0.79” ~ 4.5”) for peel or cutter mode
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 or 38.1 mm (1” or 1.5”)
Label length 5 ~ 2,794 mm (0.2” ~ 110”) 5 ~ 1,016 mm (0.2” ~ 40”)
Environment condition Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation FCC Class A, CE Class A, RCM Class A, cTUVus, TÜV/safety, CCC, BIS, KC, BSMI, EAC, ENERGY STAR
Environmental concern Comply with RoHS, REACH, WEEE
Accessories Windows labeling software CD disk
Quick start guide
USB cable
Power cord
Limited warranty Printer: 2 years
Print head: 25 km (1 million inches) or 12 months which comes first
Platen: 50 km (2 million inches) or 12 months which comes first
Factory options Internal Bluetooth 4.2 MFi
