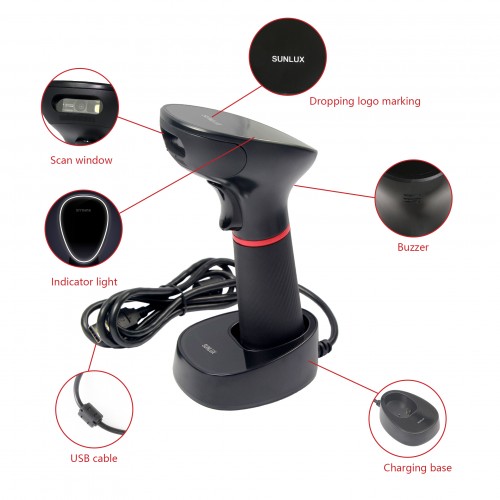

Sunlux XL-9610 Bluetooth 2D Hand Held Scanner

· 2600mAh Battery Capacity
· Transfer distance 2.4G: 150M & Bluetooth:10M
· With memory, can store 100,000 EAN-13 barcode
· Long working time: one full charge support 60,000/times scan
· Support update online, more convenient for after-sales service
· Flexible in reading 1D&2D code (including colored, stained and fuzzy code)

Add to Enquiry
Download PDF
Specification
Scanner Specification
Light Source White LED(lighting) red LED aiming
Scanning speed 60 fps
Minimum Resolution ≥3mil
Decoding Depth 60-360mm（13mil PCS90%）
Scanning Angle Rotate 360°, inclination 65°, elevation 60°
Scan Mode Manual trigger & Automatic induction
Decoding Capability 1D:Codabar、Code11、Code39、Code32、Interleaved 2 of 5、Industrial 2 of 5、
Matrix 2 of 5、Code93、Code128、GS1-128、UPC-A、UPC-E、EAN 8、EAN 13、
GS1 DataBa（r RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded、etc
2D: PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec Code
Interface USB, USB-VCP
Charging way Base contact charging & Micro USB cable charging
Charging time 4.5H
Standby time 6 months(Dormant state)
Continuous battery life 16H
Battery Replaceable & Rechargeable lithium battery, 2200mAh
Communication methods 2.4G wireless communication, Bluetooth wireless communication
Communication distance 2.4G mode: 150M (open space)
Bluetooth mode: 10M (open space)
Input voltage DC 5V
Indicator Ring LED indicator light, buzzer
Cable standard Straight：1.6m
Temperature (Operating) -0°C-50°C
Humidity (Operating) Relative humidity 5%-95%(no condensation)
Temperature (Storage) -40°C-70°C
Light Source 0-5000Lux(fluorescent), 0-100,000Lux(Sunlight)
Weight Scanner：185g
Charging base：220g
