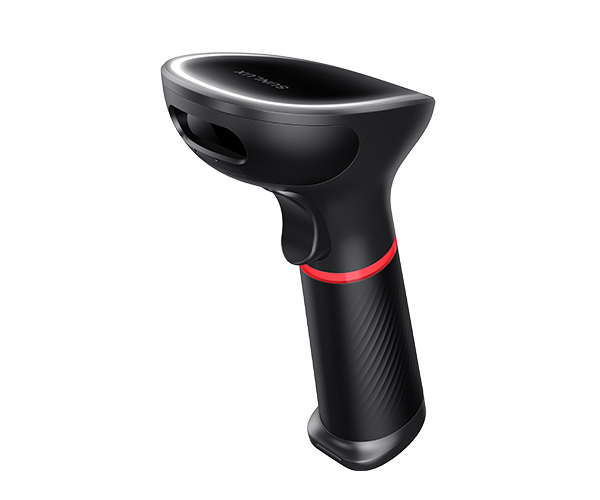

Sunlux XL-3610 Handheld Scanner

• Unique appearance, stylish shape, modern design
• 0.3 million global shutter camera, fast reading speed 60fps/s
• Fast reading on all 1D/2D barcode on paper and screen
• Quick decoding 3mil barcode and difficult barcodes
(blurred, wrinkled, low contrast, high density, high accuracy, long barcode)
• Compatible with Windows 7/8/10, iOS, Android, Linux system
• Suitable for retail stores, supermarkets, restaurant, pharmacy

Download PDF
Specification
Technical Specifications
Image Sensor CMOS
Light Levels White LED (Lighting) RED aiming light
Scanning speed 60fps
Decoding Depth 60-360mm(13mil PCS90%)
Minimum Resolution 3mil
Interface USB-HID、USB-VCP、RS232
Scan Mode Manual& Automatic
Size L*W*H : 163*68*80(mm)
Weight 185g
Input Voltage DC 3.6V-5.5V
Working current 142mah
Stand-by current 42mah
Temperature(Operating) -10°C -50°C
Temperature(Storage) -20°C -60°C
Indicate LED Indicator and Buzzer
Cable Standard 1.5m
Motion Tolerance 13cm/ second,(Skew/Pitch) +/- 65°; +/- 65°
Humidity 5%-95%(non-condensing)
Light Source 0-5000Lux(fluorescent light),0-100,000Lux(daylight)
Print min. Contrast 10%
IP Class IP54
Decoding Capability 1D:Codabar,Code11,Code39,Code32,Interleaved 2 of 5,
Industrial 2 of 5,Matrix 2 of 5,Code93,Code128,GS1-128,UPC-A,
UPC-E,EAN 8,EAN 13,GS1 DataBar,RSS14,GS1 DataBar Limited,
GS1 DataBar Expanded,etc.
2D: PDF417,Micro PDF417,QR Code,Micro QR,
Data Matrix,Aztec Code
