Honeywell PD43 Barcode Printer

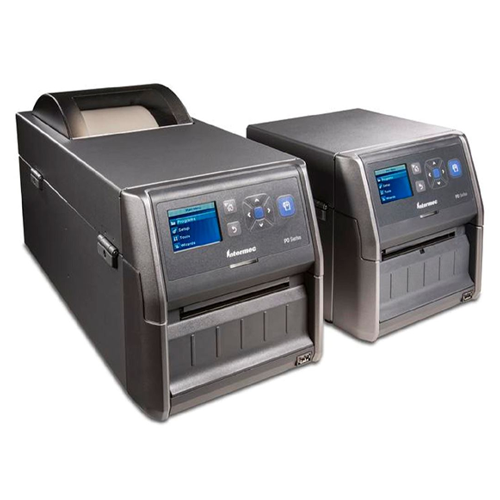

The PD43 and smaller PD43c family of light industrial thermal printers incorporate the latest printing innovations into a compact and affordable package. Ideal for tight spaces, shallow countertops, and pull-out cabinets, the PD series was designed to deliver no-compromise printing performance in the smallest possible footprint.

Suited for the distribution center and warehouse as well as airline passenger service, the PD43 upholds the long tradition of reliable performance of the PD series. An all-metal chassis, strong castaluminum print mechanism, and tool-free printhead and roller
replacement help minimize downtime and maintenance needs. With a variety of door options, the PD43 can support a wide range of media – including ink-in and ink-out ribbons with half-inch or one-inch core sizes – enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 200 mm/s (8 ips) ensure that the PD43 can scale with the changing needs of dynamic operations.

Download PDF
Specification
Physical Characteristics
PD43 with Standard Door: Length: 470 mm (18.5 in)
Width: 211 mm (8.3 in)
Height: 249 mm (9.8 in)
Weight: 8.4 kg (18.5 lbs)
PD43 with Flat Top Door: Length: 470 mm (18.5 in)
Width: 211 mm (8.3 in)
Height: 209 mm (8.2 in)
Weight: 8.3 kg (18.3 lbs)
Media Compatibility
Max. Media Diameter (OD): PD43 with Standard Door: 213 mm (8.375 in)
PD43 with Flat Top Door: 152 mm (6.0 in)
Media Core Sizes (ID): 1, 1.5, 3 in
Media Width: 19 mm (0.75 in) to 118 mm (4.65 in)
Label Length: 6.4 mm (0.25 in) to 172.7 cm (68.0 in)
Ribbon Compatibility
Ribbon Support Coated Side In, Coated Side Out
Max. Ribbon Diameter 68 mm (2.68 in)
Ribbon Core Sizes 0.5, 1 in
Ribbon Width 25.4 mm (1 in) to 110.0 mm (4.3 in)
Max. Ribbon Length 300 m (984 ft)
Printing Characteristics
Print Resolution 8.0 dpmm (203 dpi), 11.8 dpmm (300 dpi)
Max. Print Speed 203 mm/s (8.0 ips) @ 8.0 dpmm (203 dpi), 152 mm/s (6.0 ips) @ 11.8 dpmm (300 dpi)
Max. Print Speed 104 mm (4.1 in)
General Characteristics
Environmental Operating Temperature: +5° to +40°C (+40° to +104°F) @ 10–80% RH Non-Condensing
Storage Temperature: -40° to +60°C (-40° to +140° F) @ 85% RH
Electrical Input: 100–240V AC @ 50–60 Hz, 1.5 A, Energy Star Compliant
Output: 24V DC, 2.5 A
Memory Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB (via user USB thumbdrive)
