Honeywell PC43K

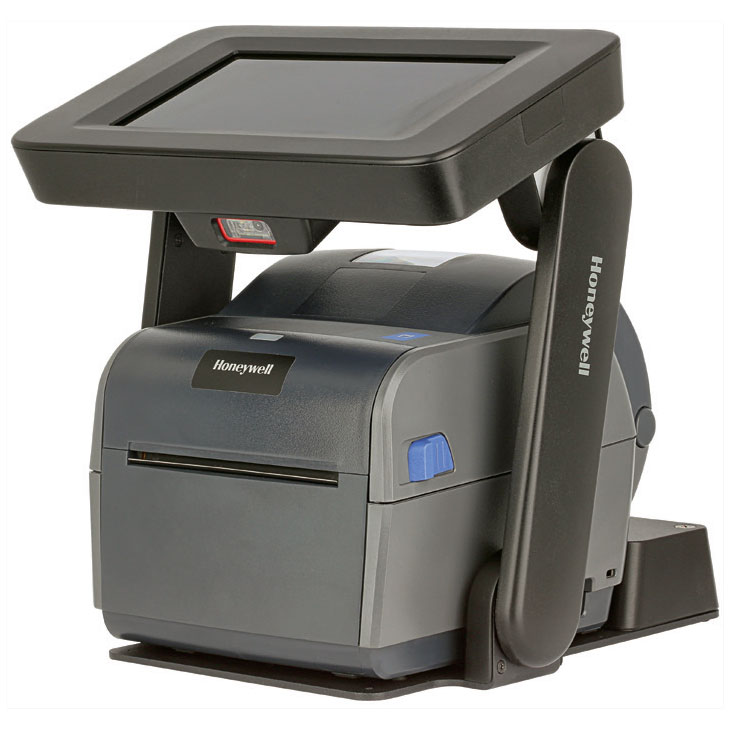

The PC43K all-in-one kiosk solution includes a tablet, printer, scanner and software from a single vendor, making it extremely easy to use and develop custom applications to fit any business model.
The PC43K comes with an integrated scan engine, ScanPal™ EDA71 tablet on an articulating arm, PC43 direct thermal printer, I/O board and wall/ desk mount to ensure that it is ready for direct consumer operations.
Specification
Mechanical (Kiosk)
| Dimensions (L x W x H) | 408 mm x 245 mm x 248 mm (16.1 in x 9.6 in x 9.8 in) |
|---|---|
| Weight | 4.55 kg (10 lb) |
Environmental (Kiosk)
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
|---|---|
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
10% to 80% relative humidity (non-condensing) |
Power Adapter (Kiosk)
| Input | 100–240V AC, 1.5A 50–60 Hz |
|---|---|
| Output | 24V, 2.5A |
Warranty (Kiosk)
One-year standard warranty; additional service packages available through Honeywell Repair Services
Print Specifications (Printer)
| Maximum Label Width | 118 mm (4.65 in) |
|---|---|
| Maximum Label Length | 300 dpi – max. 900 mm (35.4 in) |
| Print Direction | Prints text, barcodes and graphics in all four directions |
| Print Resolution | 12 dots/mm (300 dpi) |
| Print Width | 300 dpi – max. 106 mm (4.2 in) |
| Printing Speed | Selectable up to 6 ips (152.4 mm/sec) for 300 dpi |
| Communications | 802.11 b/g |
Media Specification (Printer)
| Maximum Diameter | 127 mm (5 in) |
|---|---|
| Core Diameter | Min. 25.4 mm (1 in); Max. 38.1 mm (1.5 in) |
| Paper Width | Max. 118 mm (4.7 in); Min. 19 mm (0.75 in) |
| Label Length | Min. 6.35 mm (0.25 in) |
| Labels | A wide selection of stock and custom size labels are available from Honeywell Media. |
Character Sets / Fonts (Printer)
| Printing Character Sets | English and Extended Latin, Cyrillic, Greek, Turkish, Hebrew, Arabic, Baltic, Baltic RIM, Vietnamese, Thai and more with Monotype Universal Font Scaling Technology (UFST) and WorldType Layout Engine (WTLE) |
|---|---|
| Resident Fonts | Century Schoolbook, CG Times, CG Times Bold, Letter Gothic, Andale Mono, Andale Mono Bold, Univers, Univers Bold, Univers Condensed Bold, Univers Extra Condensed, OCR-A, OCR-B |
| Optional | Support for downloading TrueType and TrueType-based OpenType fonts and user-defined fonts |
Graphics (Printer)
Native support for one-bit BMP, GIF, PCX and PNG graphic formats
Barcode Symbologies (Printer)
All major 1D barcode symbologies are available, plus 2D and composite codes: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)
Software (Printer)
| Printer Command Languages | IPL, DP, ZSim2 (ZPL-II), DSim (DPL), ESim (EPL) XML-enabled for SAP® AII and Oracle® WMS |
|---|---|
| Applications/Drivers |
InterDriver Windows® printer driver |
| Smart Printing Languages | Honeywell C# for Printers Smart Printing Developer Resource Kit Write apps with .NET-compatible development environments Honeywell Fingerprint – use Honeywell Fingerprint Application Builder (IFAB) |
| Configuration and Device Management Support |
PrintSet for printer configuration Honeywell SmartSystems™ Foundation Sophisticated web interface for configuration, upgrades and 1:1 management Wavelink Avalanche® |
System Architecture (Printer)
| Memory | 128 MB Flash, 128 MB RAM (DDR2) |
|---|---|
| Interface0 | USB Device Type B connector v.2.0 high speed; USB Host Type A connector v.2.0 high speed |
| Serial Flow Control | XON/XOFF, RTS/CTS (DTR/DSR) |
| Wireless Protocol | WEP static (64/128 bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, Wi-Fi certified |
System Architecture (Tablet)
| Processor | 1.8 GHz Qualcomm® SDM450 8-core |
|---|---|
| Operating System | Android 8 (Oreo), upgradeable to Android P and Q |
| Memory | 2/4 GB RAM, 32/64 GB Flash |
| Display | 7-inch high definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel |
| Touch Panel | Rugged, multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use |
| Keypad | On-screen keypad, side scan triggers, volume up/down, power button |
| Audio | Built-in speaker, Bluetooth® wireless headset support |
| Sensors | Ambient light sensor, proximity sensor, accelerometer |
| Application Software | Honeywell Power Tools and Demos, Honeywell SDKs for Android |
Wireless Connectivity(Tablet)
| WLAN | IEEE 802.11 a/b/g/n/ac, Wi-Fi certified |
|---|---|
| Additional WLAN Features | 802.11 d/e/h/i/k/r/u/w (mc with Android P) |
| WLAN Security | OPEN, WEP, WPA/WPA2 (Personal and Enterprise) |
| Supported EAP | TLS, PEAP, TTLS, PWD, FAST, LEAP |
| Bluetooth | Class 2 V4.2 Bluetooth |
| Bluetooth Profiles | HFP, PBAP, A2DP, AVRCP, OPP only |
| NFC | Integrated Near Field Communication |
| VoIP | Supported |
| VPN | IPSec V4/L2TP, PPTP |
| GPS Supported Protocols | GNSS receiver for BeiDou, GPS and GLONASS |
Scan Performance (Scanner)
| Sensor | CMOS sensor with 640 x 480 pixel resolution |
|---|---|
| Illumination | White LED |
| Aiming | Red LED dot aimer |
| Typical Frame Rate | 30 frames per second |
| Motion Tolerance | Up to 10 cm/s (4 in/s) for 13-mil UPC at optimal focus |
| Field of View | Horizontal: 37.8°, vertical: 28.8° |
| Scan Angles | Tilt: 360°, pitch: ±45°, skew: ±45° |
| Symbol Contrast | 35% minimum print contrast ratio |
| Symbologies | Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/ EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
Standard Range (SR Optics)*
| Narrow Width | Depth of Field |
|---|---|
| 100% UPC | 5.5 cm – 28 cm (2.1 in – 11 in) |
| 5 MIL CODE 39 | 6.1 cm – 13 cm (2.4 in – 5.1 in) |
| 20 MIL CODE 3 | 6 cm – 38 cm (2.4 in – 15 in) |
| 6.7 MIL PDF417 | 6 cm – 12.5 cm (2.4 in – 4.9 in) |
| 10 MIL DATA MATRIX | 6 cm – 13 cm (2.4 in – 5.1 in) |
| 20 MIL QR | 5 cm – 23 cm (2 in – 9 in) |
