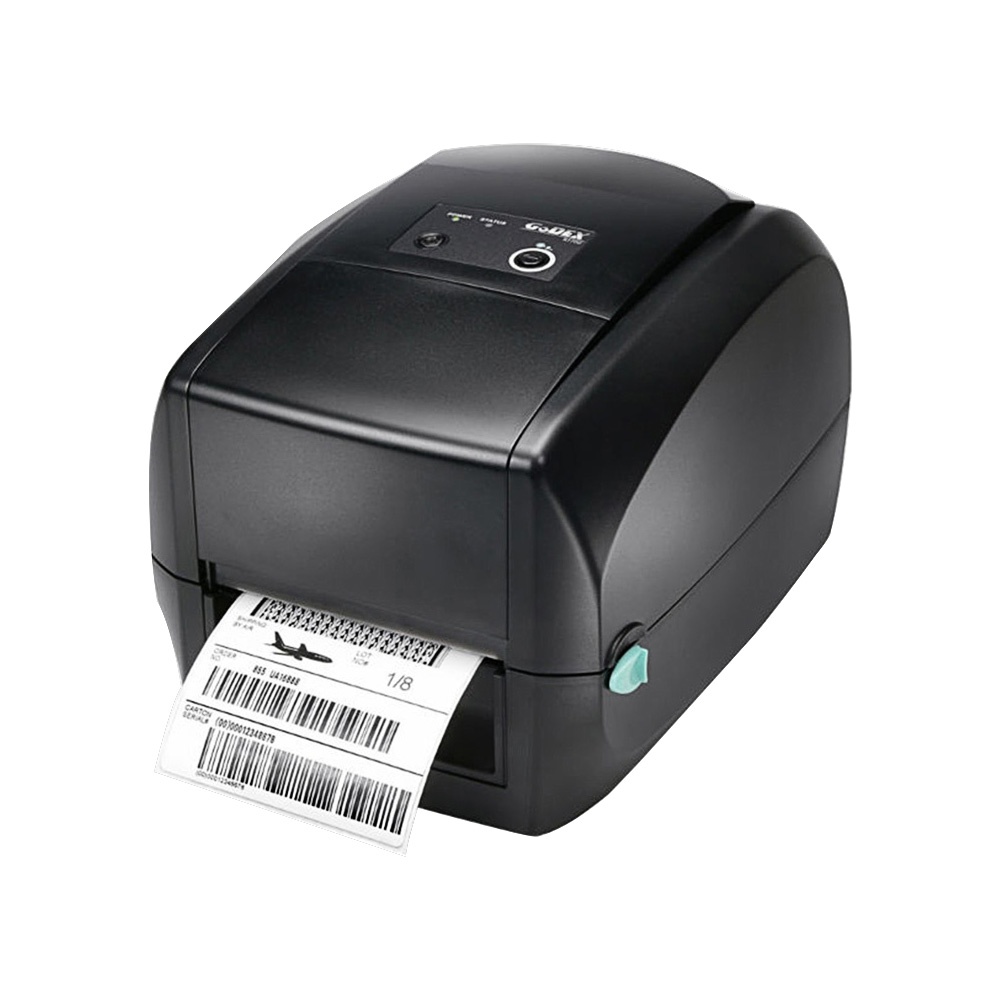

GoDex RT700X Barcode Printer

Advanced multi-purpose 4” desktop printer for light to medium duty applications. With its powerful and reliable features,RT700x is the best choice for retail and industrial applications.

Download PDF
Specification
Printer Specification
Memory 8MB Flash (4MB for user storage) / 16MB SDRAM
CPU 32 bit RISC CPU
Sensors Adjustable reflective sensor (full range) & Fixed transmissive sensor and central aligned
Interface USB 2.0 Serial port: RS-232 (DB-9) Ethernet 10/100 Mbps,USB Host
Dimensions Length: 11.0” (280 mm) Height: 7.3” (186 mm) Width: 8.3” (210 mm)
Weight 6.6 lbs (3.0 Kg) ,excluding consumables
Power Source Auto Switching 100-240VAC, 50-60Hz
Environment Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Printing Specification
Printing Method Direct Thermal / Thermal Transfer
Printing Resolution 203 dpi (8 dots/mm)
Printing Speed Up to 7 IPS (177 mm/s)
Printing Length Min. 0.16” (4 mm); Max. 68” (1727 mm)
Printing Width 4.25″ (108mm)
Fonts / Graphics / Symbologies
Fonts Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
1D Barcodes 1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2D Barcodes PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Software Specification
Software – Label editing GoLabel (for EZPL only)
Software – Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 &2012、 MAC、 Linux
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Media and Ribbon Characteristics
Media Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Media Width: 0.79” (20 mm) Min. – 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.2 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1″ & 1.5″ (25.4 mm & 38.1 mm)
Ribbon Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” (30 mm) Min. – 4.33” (110 mm) Max.
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
