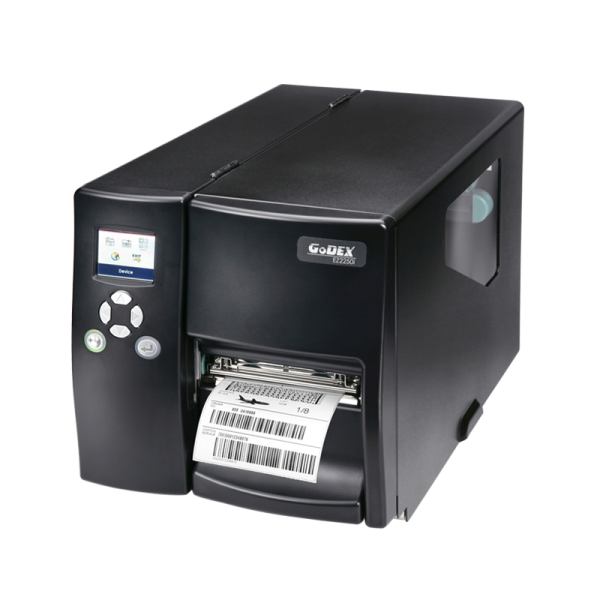

GoDex EZ2050 Barcode Printer
Most affordable and powerful industrial barcode printer. The GoDEX EZ2050 is a perfect solution for industrial label printing applications where high performance and an affordable price is important.
- Ethernet, Serial, USB port and Auto Calibration button included
- Easy to change, low-cost printhead assembly
- All metal, industrial enclosure and print mechanism
- Free labeling software GoLabel for easy printing
- 203 DPI model
Specification
Printer Specification
Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
---|---|
CPU | 32 bit RISC CPU |
Sensors | Adjustable reflective sensor and transmissive sensor, left aligned |
Interface | Serial port: RS-232 (DB-9) USB port Ethernet 10/100Mbps |
Dimensions | Length: 20.15” (512 mm) Height:11.45” (291 mm) Width: 10.78” (274 mm) |
Weight | 33 lbs (15 Kg), excluding consumables |
Power Source | Auto Switching 100-240VAC, 50-60Hz |
Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
Printing Specification
Printing Method | Direct Thermal / Thermal Transfer |
---|---|
Printing Resolution | 203 dpi (8 dots/mm) |
Printing Speed | 6IPS (150 mm/s) |
Printing Length | Min. 0.16” (4 mm)** ; Max. 100” (2540 mm) |
Printing Width | 4.09” (104 mm) |
Fonts / Graphics / Symbologies
Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
---|---|
1D Barcodes | Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar |
2D Barcodes | PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code |
Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
Software Specification
Software – Label editing | QLabel-IV / GoLabel (for EZPL only) |
---|---|
Software – Driver | Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008 |
Media and Ribbon Characteristics
Media Type | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
---|---|
Media | Width: Standard: 1” (25.4 mm) Min. – 4.64” (118 mm) Max. With Cutter: 4.61” (117 mm) Max. With Dispenser / Rewinder: 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.25 mm) Max. Label roll diameter: Max. 8” (203.2 mm) with 3″ (76.2 mm) core / Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core Core diameter: 1.5” (38.1 mm) – 3” (76.2 mm) |
Ribbon | Types: Wax, wax/resin, resin Length: 1471’ (450 m) Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max Ribbon roll diameter.: 2.99” (76 mm) Core diameter: 1” (25.4 mm) |
