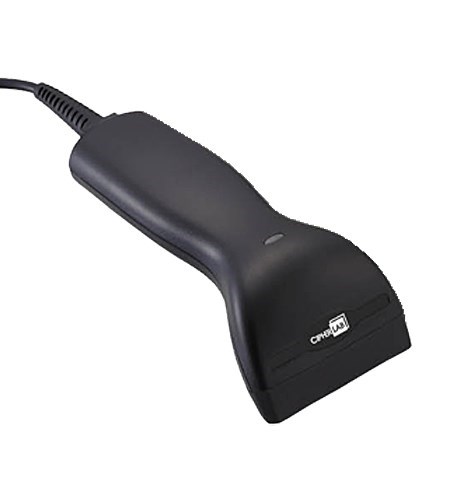

Cipherlab 1000A Contact Linear Imager

CipherLab’s 1000A scanner instantly enhances your scanning capabilities with its optimal scanning efficiency and accuracy. Its 12 cm depth of field scanning on barcodes allows users to freely focus the reader from contact mode or at a distance of 12 cm. No matter if you need to read barcodes that are clustered together or barcodes that are too wide, the 1000A’s enhanced depth of field has got you covered. Additionally, the 1000A can read high-density barcodes up to 3 mil on limited space, which supports even the tiniest barcodes commonly found on jewelry or electronics.

Download PDF
Specification
Performance
Category Linear imaging scanner (for barcodes up to 150mm wide))
Optical sensor 1500 pixels
Light source Red LED (650 nm)
Resolution 3 mil
Depth of field
13 mil barcode
0 to 12cm / 0 to 4.72 in.
Scanning angle Pitch ±70° Skew ±40°
PCS Minimum 30%
Scan rate 200 scans / second
Auto-sense mode N / A
Interfaces supported RS232, Keyboard wedge, USB
Barcodes supported Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Italian and French Pharmacodes, Plessey, Telepen, UPC / EAN / GS1-128, and more
Programmable features Data editing, interface selection, symbology configuration
Language support US and UK English, French, Italian, Belgian, Norwegian, Swedish, Spanish, Portuguese, German
Physical
Dimension
L x W x H
17 x 8 x 4.8 cm /
6.7 x 3.1 x 1.9 in.
Weight 203 g / 7.2 oz. (w /cable)
Color Ivory or Black
Switch Rubber switch
Electrical
Voltage +5V ±5%
Power consumption
Standby / Operating
30mA /120 mA
User Environment
Operating temperature 0 ° to 50°C / 32° to 122°F
Storage temperature -20° to 60°C / -4° to 140°F
Operating/storage humidity
Non-condensing
10% to 90% / 5% to 95%
Impact resistance
Multiple drops onto concrete
1.0 m / 3.3 ft. Drops
Electrostatic discharge Conforms to ± 15 kV air discharge and ± 8 kV contact discharge
Regulatory compliance BSMI, CE, RCM, FCC, IC, KC, RoHS, REACH, WEEE, ErP
Optional
Configuration Setup options include Windows®-based ScanMaster/ScanManager, by direct connection or printing out barcode settings. OPOS driver ready.
Accessories Includes attached cable
Warranty 5 years
